Male Pluggable Copper Terminal Block 5.00mm 300V 14.5A for Flexible Design Competitive PA66+25%GF
-
Highlight
14.5A Pluggable Copper Terminal Block
,300V Pluggable Copper Terminal Block
,5.00mm Pluggable Copper Terminal Block
-
ColorBlack
-
Voltage300V
-
Pitch5.00mm
-
Current14.5A
-
Poles7/9/11/13 Poles
-
TerminalBrass
-
Rated Surge VoltageNo Abnormal Within 1 Minute
-
Inflammability ClassUL94, V-0
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationCE,UL
-
Model NumberTP500H-08V
-
Minimum Order Quantity1000 Piece/Pieces
-
PriceUSD 0.018-0.045 Per Pole
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T, L/C
-
Supply Ability1000000 Pole/Poles per Month
Male Pluggable Copper Terminal Block 5.00mm 300V 14.5A for Flexible Design Competitive PA66+25%GF
Male Pluggable Copper Terminal Block 5.00mm 300V 14.5A for Flexible Design Competitive PA66+25%GF
Detailed product Description:

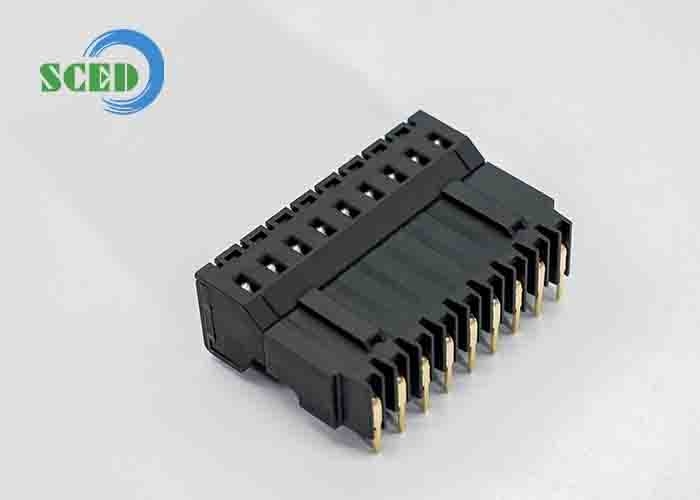

Header, Male Sockets, Pitch: 5.00mm, 300V 14.5A, Pluggable Terminal Blocks, Plug-in Terminal Blocks
This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79
Wire Inlet: ■Right angle wire inlet
Levels: ■Single Level
Standard color: Black.
Other colors also available, please refer to below How to Order and select the color you want.
Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control 2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military and Elevator and so on.
Competitive Advantage:
- Full range products for selection
- Flexible to design the exact part per customers’ demand
- High quality but competitive price

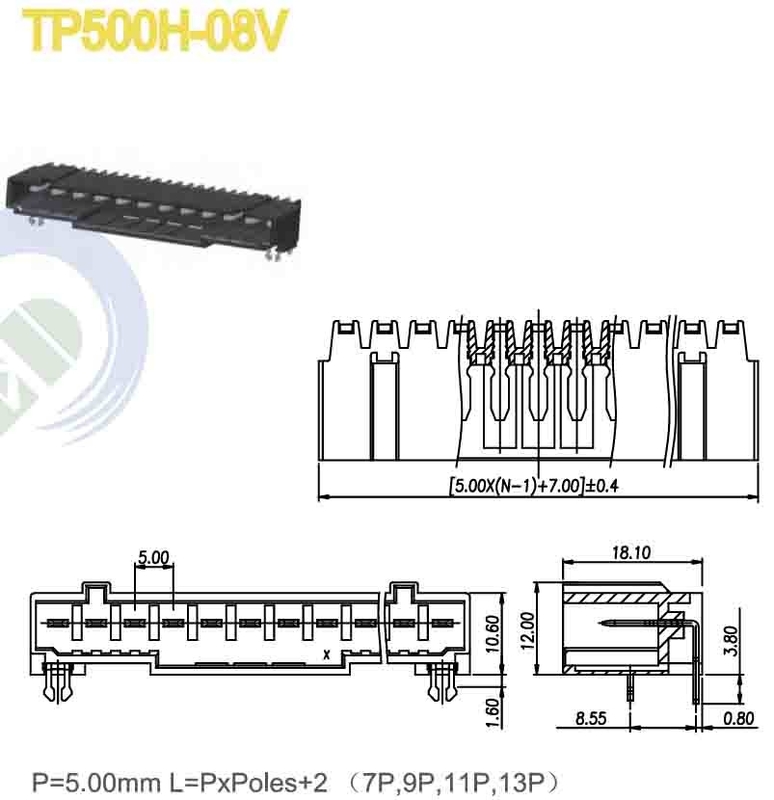

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/14.5 | 300/14.5 | 300/10 |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 14.5 | 500 / 14.5 | 630 / 14.5 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66+25%GF / UL94, V-0 | ||
| Terminal / Plating | Copper / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 0.7*0.9 | ||
Our products are sold all over the world, you can rest assured.
