300V 18A Electrical Terminal Blocks 5.08mm Male Header Grey Plug In Terminal Blocks

300V 18A Electrical Terminal Blocks 5.08mm Male Header Grey Plug In Terminal Blocks

Products - Pluggable Terminal Block
  • Highlight

    5.08mm Male Header Terminal Blocks

    ,

    18A Male Header Terminal Blocks

    ,

    300V Male Header Terminal Blocks

  • Type
    Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors
  • Pitch
    5.08mm
  • Number Of Contacts
    2P-24P
  • Rated Voltage
    300V
  • Rated Current
    18A
  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508H-00V
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

300V 18A Electrical Terminal Blocks 5.08mm Male Header Grey Plug In Terminal Blocks

  • 300V 18A Electrical Terminal Blocks 5.08mm Male Header Grey Plug In Terminal Blocks
  • 300V 18A Electrical Terminal Blocks 5.08mm Male Header Grey Plug In Terminal Blocks
  • 300V 18A Electrical Terminal Blocks 5.08mm Male Header Grey Plug In Terminal Blocks
Get Price Contact Now

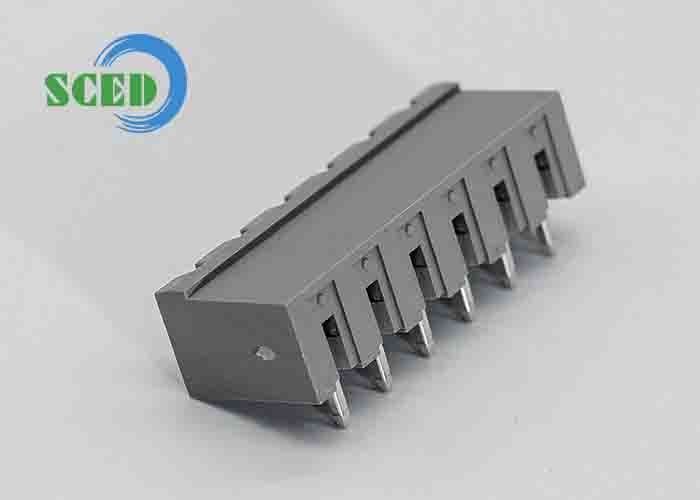

300V 18A Electrical Terminal Blocks 5.08mm Male Header Grey Plug In Terminal Blocks


□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-00V

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:

 300V 18A Electrical Terminal Blocks 5.08mm Male Header Grey Plug In Terminal Blocks 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

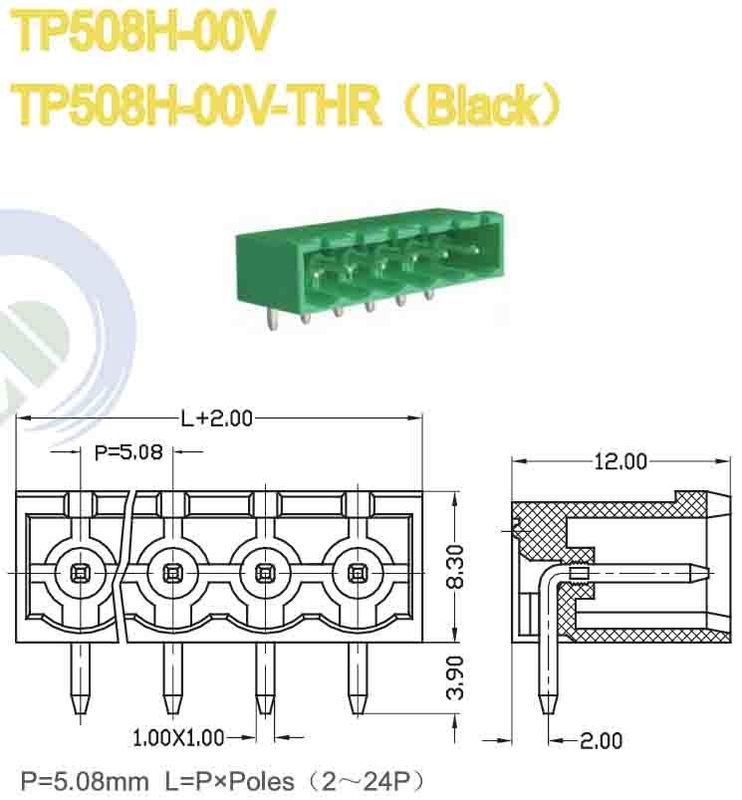

Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300 / 10

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

400 / 18

500 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0 (THR:PA46 UL94, V-0)

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.4

Pin Dimension                      mm

1.0*1.0




 300V 18A Electrical Terminal Blocks 5.08mm Male Header Grey Plug In Terminal Blocks 1




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
