PA66 Pluggable Terminal Block Male Sockets Header Double Level Pitch 5.08mm 300V 18A
-
Highlight
300V Pluggable Terminal Block
,PA66 Pluggable Terminal Block
,18A Pluggable Terminal Block
-
Pcb Hole Diameter1.4mm
-
Voltage300V
-
Use ToPCB
-
Insulation MaterialPA66
-
Poles2-24 Poles
-
TerminalBrass
-
Current Rating18A
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTP508H-06V
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
PA66 Pluggable Terminal Block Male Sockets Header Double Level Pitch 5.08mm 300V 18A

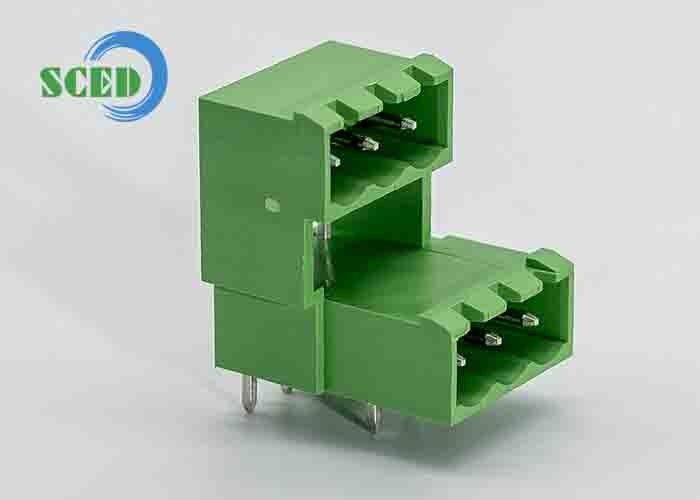

Male Sockets Header Double Level Pitch 5.08mm 300V 18A PA66 Pluggable Terminal Block
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double Levels; □Triple Levels
This male socket match with female plug series: TP381P-00F, TP381P-01F, TP381P-02F, TP381P-03F, TP381P-04F

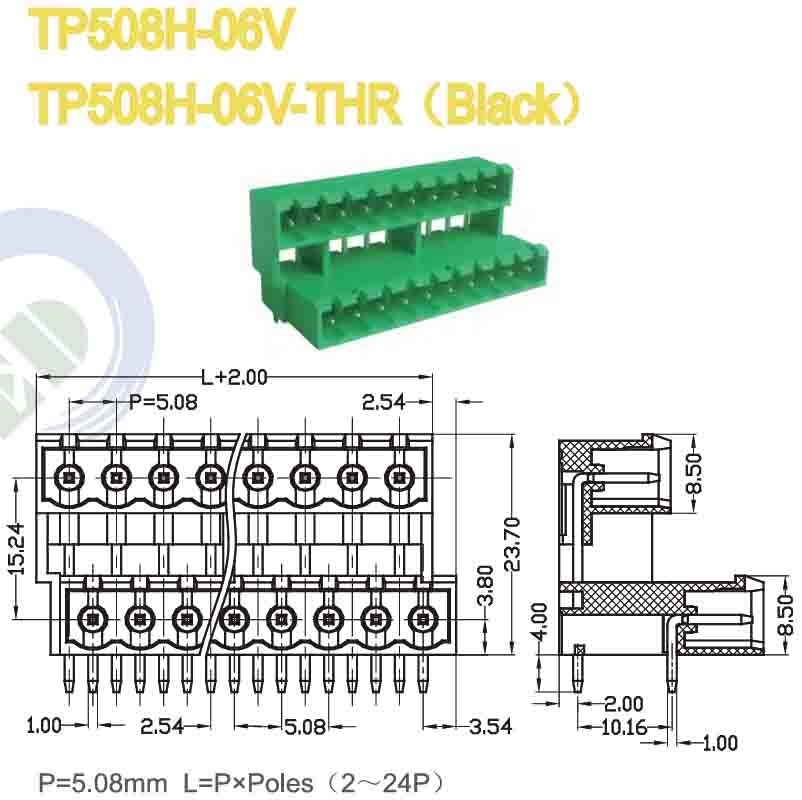

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/10 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 400 / 18 | 500 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0(THR:PA46 UL94,V-0) | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm |
1*1 |
||
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
