Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm 300V 18A Male Sockets
-
Highlight
300V Pluggable Terminal Block
,Pluggable Double Level Terminal Block
,18A Pluggable Terminal Block
-
Rated Surge VoltageNo Abnormal Within 1 Minute
-
LevelsDouble Levels
-
ColorGreen
-
Pitch5.08mm
-
TypeMale Parts
-
Insulation MaterialPA66
-
Clamp CageBrass
-
Inflammability ClassUL94-V0
-
Poles2-22 Poles
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationCE,UL
-
Model NumberTP508H-06VF
-
Minimum Order Quantity500 Piece/Pieces
-
PriceUSD 0.025-0.05 Per Pole
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month
Pluggable Double Level Terminal Block Headers 2*2-2*22 Poles 5.08mm 300V 18A Male Sockets
Headers 2*2-2*22 Poles 5.08mm 300V 18A Male Sockets Pluggable Double Level Terminal Block
Detailed product Description:

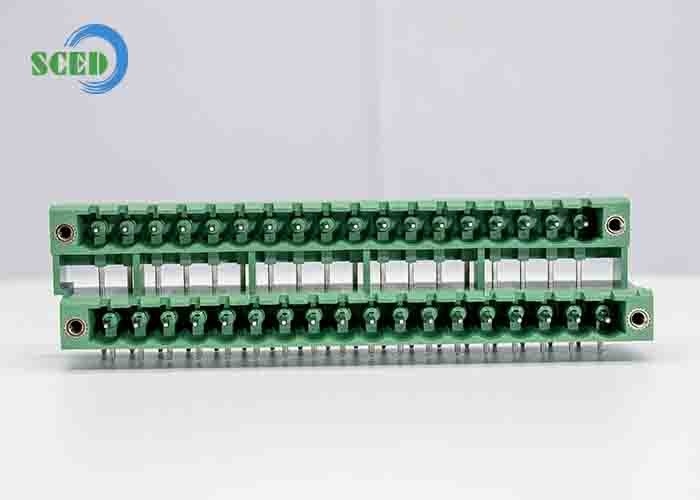

Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2*2P-22*2P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
Levels: □Single Level; ■Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F
Standard color: Green.
Other colors can be also available as required, please refer to below How to Order and select the color you want.
How to order:

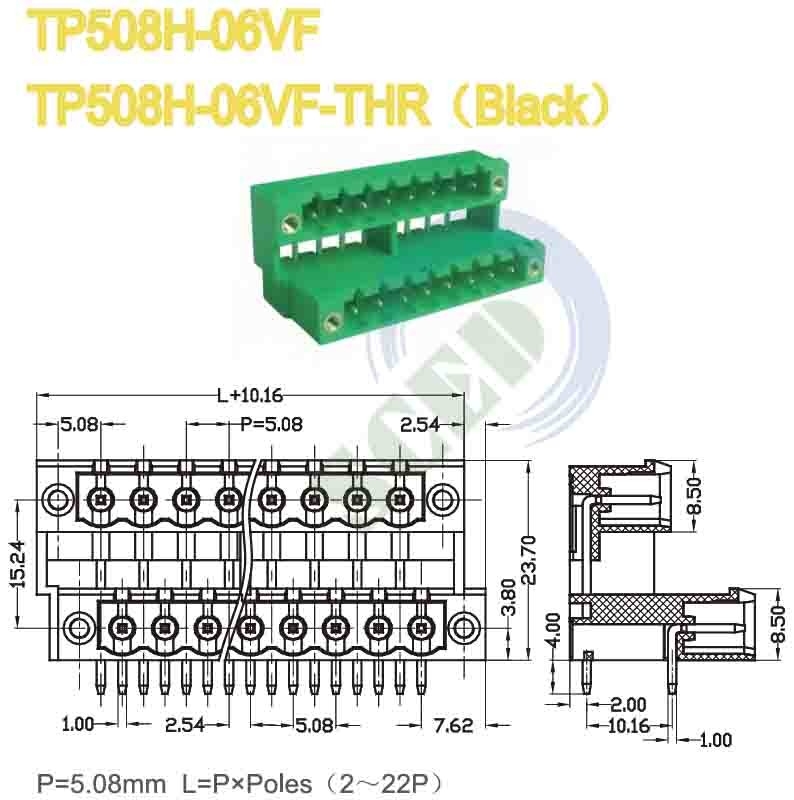

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 400 / 18 | 500 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.0 x 1.0 | ||
Applications:
1. PCB, Frequency Converters, Server Site, Switch
2. Power Supply, Electric Lighting, Industry Control, Automation
3. Rail Transportation, Communication, Electric Power, Security
4. Medicine Equipment, Military, Elevator, etc..
