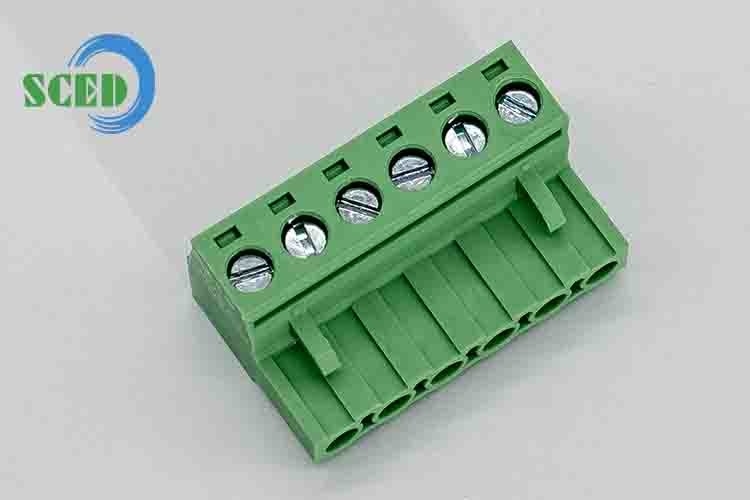

Pitch 5.08mm Pluggable Terminal Block Brass Green M3 PA66 12-30 AWG

Pitch 5.08mm Pluggable Terminal Block Brass Green M3 PA66 12-30 AWG

Products - Pluggable Terminal Block
  • Highlight

    Green Pluggable Terminal Block

    ,

    12-30 AWG Pluggable Terminal Block

    ,

    Brass Pluggable Terminal Block

  • Pitch
    5.08mm
  • Color
    Green
  • Type
    Female Parts
  • Current
    18A
  • Voltage
    300V
  • Plastic
    PA66
  • Metal Parts
    Brass
  • Inflammability Class
    UL94, V-0
  • Place of Origin
    Suzhou,China
  • Brand Name
    SCED
  • Certification
    UL,CE
  • Model Number
    TP508P-00
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.04-0.088 PER Pole
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Pitch 5.08mm Pluggable Terminal Block Brass Green M3 PA66 12-30 AWG

  • Pitch 5.08mm Pluggable Terminal Block Brass Green M3 PA66 12-30 AWG
  • Pitch 5.08mm Pluggable Terminal Block Brass Green M3 PA66 12-30 AWG
  • Pitch 5.08mm Pluggable Terminal Block Brass Green M3 PA66 12-30 AWG
Get Price Contact Now

Pitch 5.08mm Pluggable Terminal Block Brass Green M3 PA66 12-30 AWG



Detailed product Description:



Plug, Female, Pitch: 5.08mm, 300V 18A, 2P-24P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



■Single Level; □Double Levels; □Triple Levels



This female plug match with male sockets’ series: Online consultation



Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

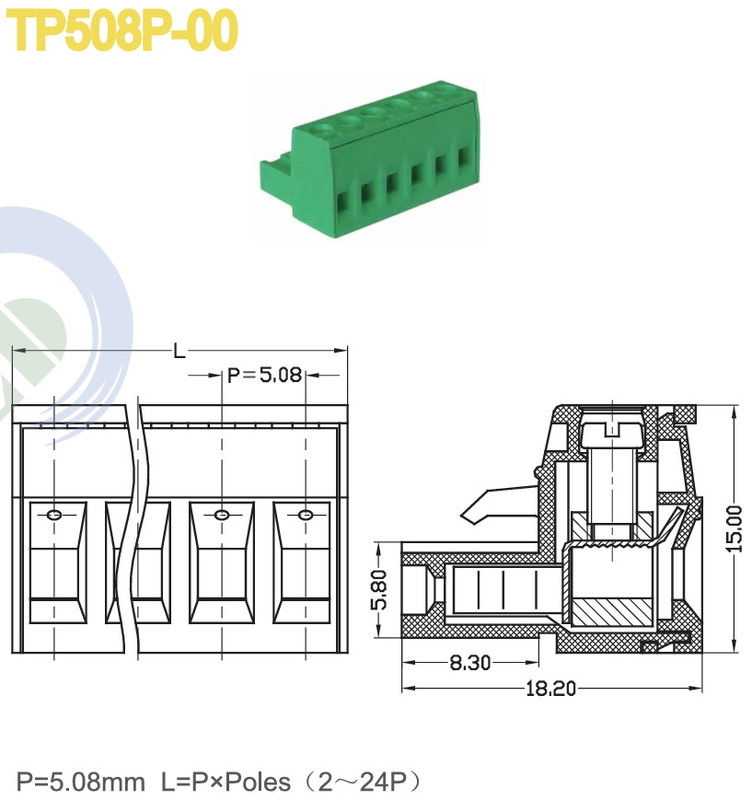

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/10
Wire Range AWG 12-30   12-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 320 / 18 630 / 18
Rated Surge Voltage KV 4 4  4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3



Pitch 5.08mm Pluggable Terminal Block Brass Green M3 PA66 12-30 AWG 0



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
