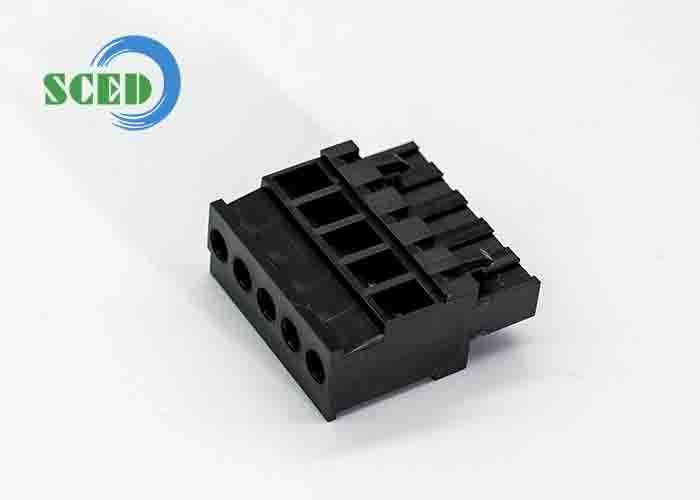

Female Pluggable Terminal Block Connector 5.08mm Pitch 300V 18A 2-24 Poles PA66 M3 Screw
-
Highlight
300V Pluggable Terminal Block
,5.08mm Pitch Pluggable Terminal Block
,18A Pluggable Terminal Block
-
ColorBlack Or Green Or Customized
-
Pitch5.08mm
-
Voltage300V
-
Current18A
-
Wire Range12-30 AWG
-
ScrewM3
-
PlasticPA66
-
Stripping Length7mm
-
Clamp CageBrass
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationCE,UL
-
Model NumberTP508P-02
-
Minimum Order Quantity1000 Piece/Pieces
-
PriceUSD 0.051-0.12 per pole
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsL/C, T/T
-
Supply Ability1000000 Pole/Poles per Month
Female Pluggable Terminal Block Connector 5.08mm Pitch 300V 18A 2-24 Poles PA66 M3 Screw
Female Pluggable Terminal Block Connector 5.08mm Pitch 300V 18A 2-24 Poles PA66 M3 Screw
Detailed product Description:
Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Levels: ■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

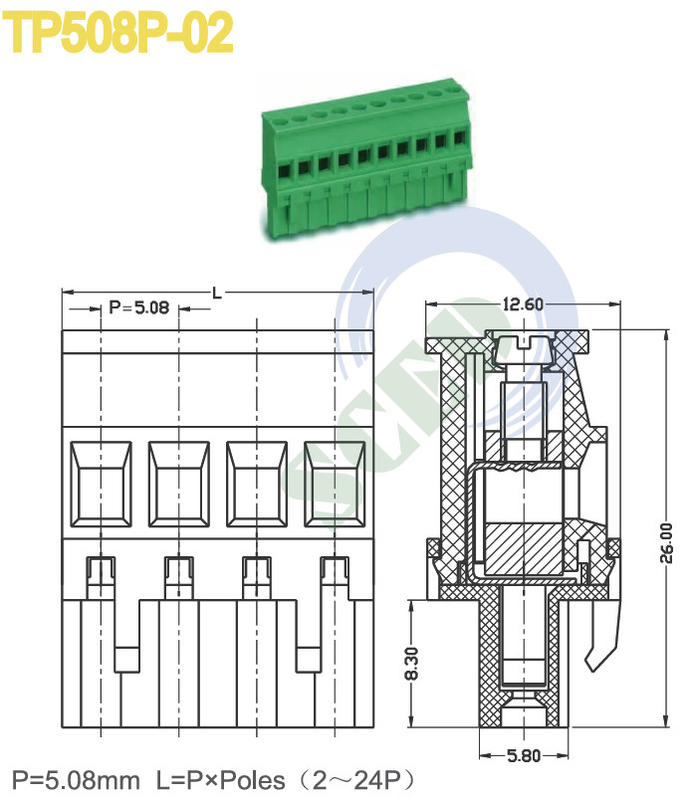

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 18 | 300/10 | |
| Wire Range AWG | 12-30 | 12-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 18 | 320 / 18 | 630 / 18 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Phosphor Bronze / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| Stripping Length mm | 7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
- OEM and ODM service available
- More than 1000 models for selection
- High quality and competitive price
- Good service and quick response
Applications:
Normally, our products can be used in following:
1. Communication, Power Supply, Industrial Control, Medical Equipment
2. Security, PCB, Automation, Military, Rail Transportation
3. Server Site, Switch, Electric Lighting, Frequency Converter etc.
Our products are sold all over the world, you can rest assured.
