Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block

Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block

Products - Pluggable Terminal Block
  • Highlight

    300V Pluggable Terminal Block

    ,

    5.08mm Pluggable Terminal Block

    ,

    18A Pluggable Terminal Block

  • Pitch
    5.08mm
  • Operating Temperature
    -40°C To +105°C
  • Stripping Length
    7mm
  • Wire Range
    12-30 AWG
  • Poles
    2-20 Poles
  • Termination Type
    Screw
  • Current Rating
    18A
  • Certifications
    CE, RoHS
  • Contactor
    Brass
  • Inflammability Class
    UL94, V-0
  • Color
    Green
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508P-06F
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block

  • Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block
  • Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block
  • Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block
Get Price Contact Now

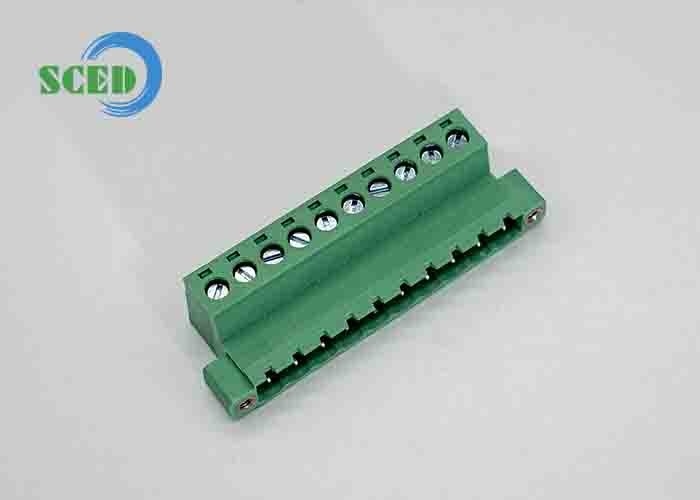

Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block



■Single Level; □Double Levels; □Triple Levels



This female plug match with male sockets’ series: Online consultation



Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block 0

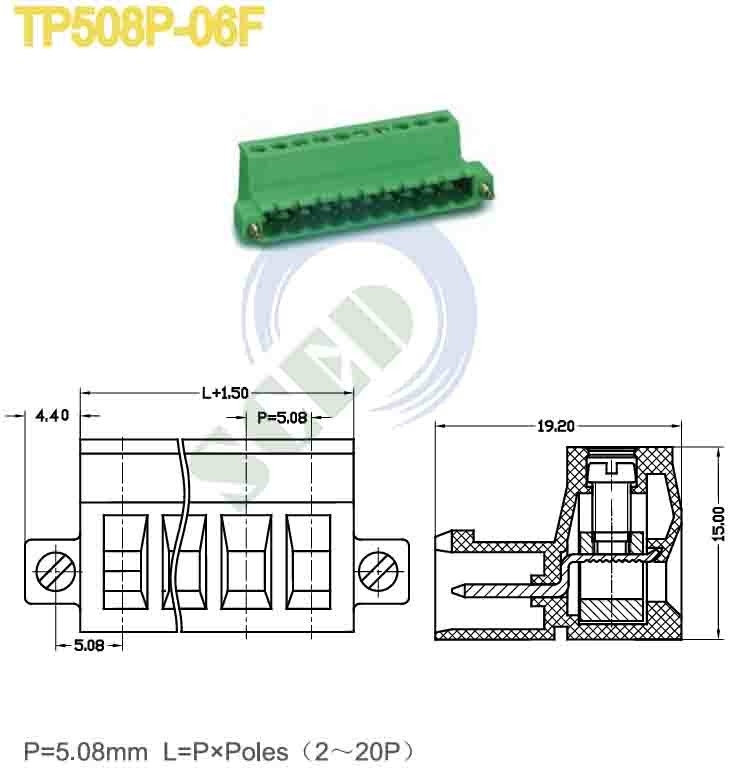

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/10
Wire Range AWG 12-30   12-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 320 / 18 630 / 18
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3





Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block 1



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





Pluggable Terminal Block Plug Female Sockets Pitch 5.08mm 300V 18A 2-20P Plug-in Terminal Block 2
