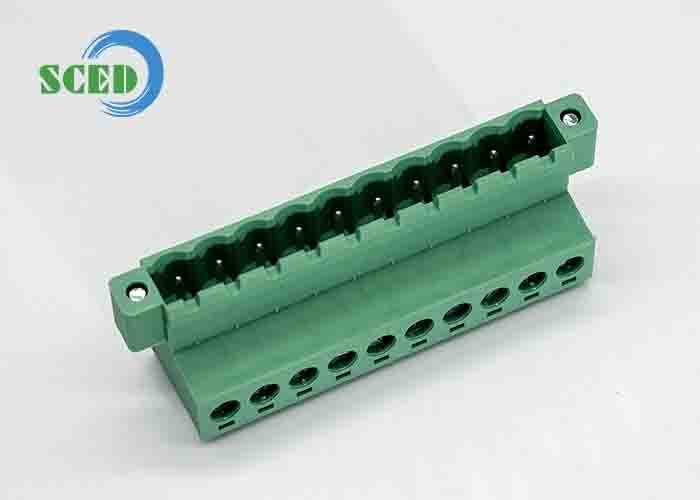

Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation

Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation

Products - Pluggable Terminal Block
  • Highlight

    Industry Control Automation Terminal Blocks

    ,

    PCB PA66 M3 Terminal Blocks

    ,

    Single Level PCB Terminal Blocks

  • Type
    Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks
  • Pitch
    5.08mm
  • Number Of Contacts
    2P-20P
  • Rated Voltage
    300V
  • Rated Current
    18A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508P-26F
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation

  • Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation
  • Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation
  • Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation
Get Price Contact Now

Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This header match with plug series: Online consultation

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:

Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

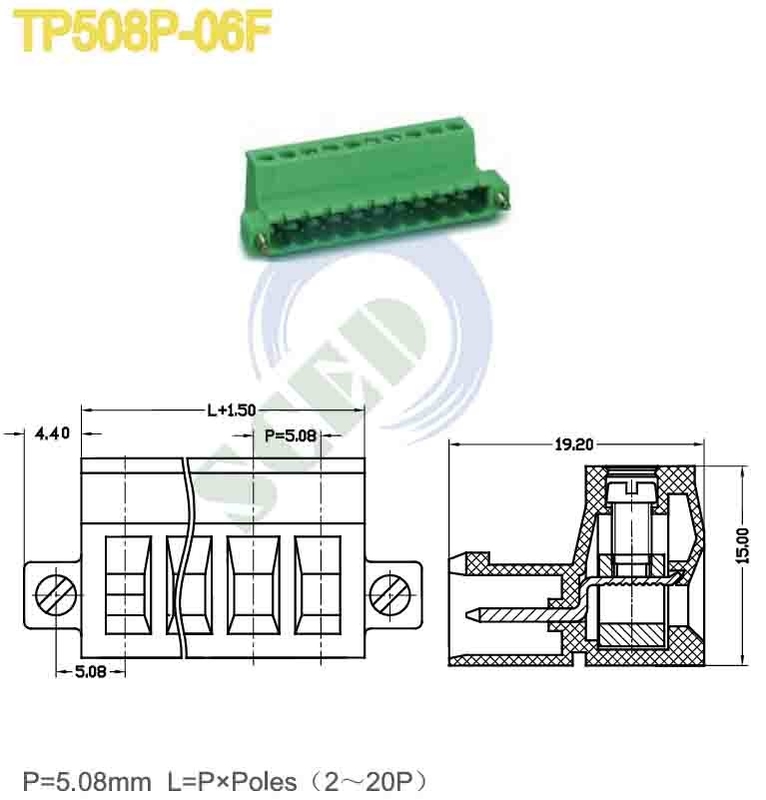

Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300/10

Wire Range                       AWG

12-30



12-30

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

320 / 18

630 / 18

Rated Surge Voltage                 KV

4

4

4
Rated Connecting Capacity   mm² 2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length              mm

7

Screw / Torque                  / lbf·in

M3 / 4.4-5.3





Pitch 5.08mm Single Level PCB PA66 M3 Plug-in Terminal Blocks For Industry Control Automation 1


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
