Feed Through Panel Terminal Blocks Bulkhead Connectors PA66 M10 Pitch 30.0mm
-
Highlight
Bulkhead Connectors Through Panel Terminal Blocks
,M10 Through Panel Terminal Blocks
,PA66 Through Panel Terminal Blocks
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorGrey
-
Pitch30.0mm
-
Rated Current285A
-
Rated Voltage600V
-
TypeThrough Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors
-
Wire Range2-300kcmil
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR-150N-03F
-
Minimum Order Quantity200
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability100K poles each monthly

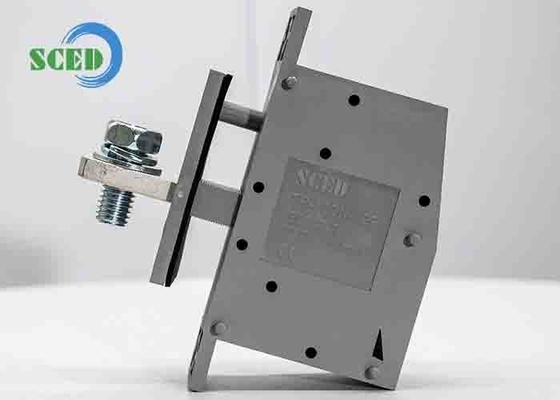

Feed Through Panel Terminal Blocks Bulkhead Connectors PA66 M10 Pitch 30.0mm
Feed Through Panel Terminal Blocks Bulkhead Connectors PA66 M10 Pitch 30.0mm
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

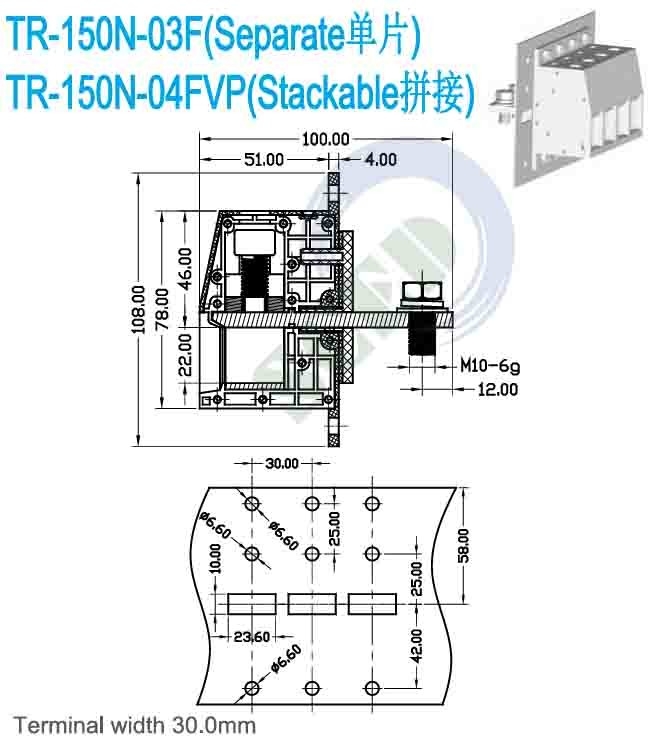

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 285 |
|
|
|
Wire Range AWG |
2-300kcmil |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 309 |
800 / 309 |
1000 / 309 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
150 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
26 |
||
|
Screw / Torque / lbf.in |
M10 / 50-60 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
