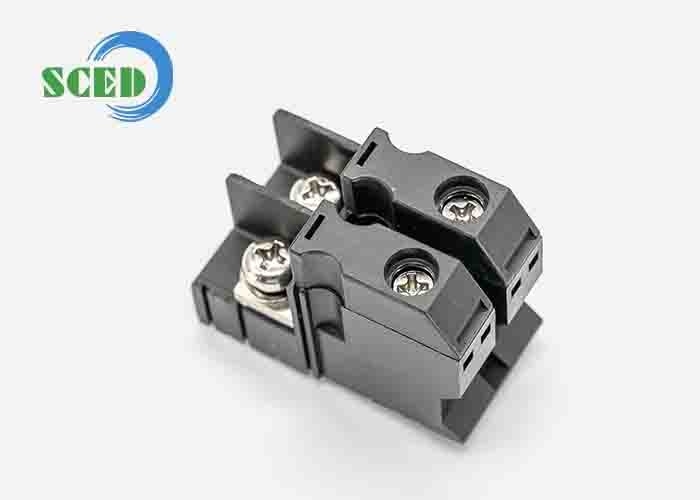

Electrical Feed Through Terminal Block Connector 600 Voltage 60A PA66 12.70mm
-
Highlight
Electrical Feed Through Terminal Block Connector
,PA66 Feed Through Terminal Block
,60A Feed Through Terminal Block
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorBlack
-
Number Of Contacts2P Or 3P
-
Pitch12.70mm
-
Rated Current60A
-
Rated Voltage600V
-
TypeFeed Through Terminal Block,Feed Through Terminal Connectors,Electrical Terminal Blocks
-
Wire Range8-26
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTD60-00
-
Minimum Order Quantity200
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability100K poles each monthly
Electrical Feed Through Terminal Block Connector 600 Voltage 60A PA66 12.70mm
Electrical Feed Through Terminal Block Connector 600 Voltage 60A PA66 12.70mm
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

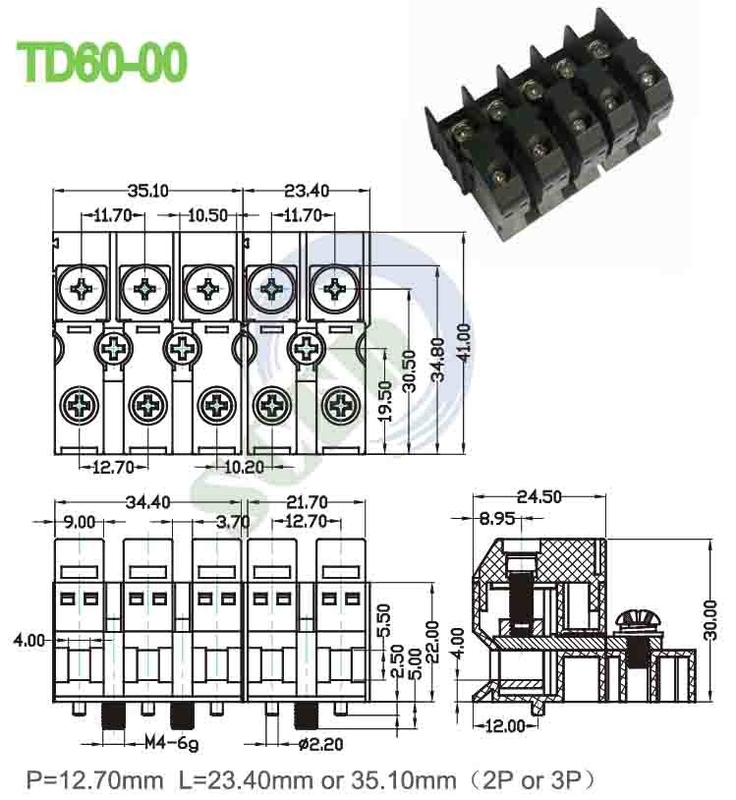

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 60 |
600 / 60 |
|
|
Wire Range AWG |
8-26 |
8-26 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 60 |
1000 / 60 |
1000 / 60 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
6 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Conduction Board / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
|
Screw / Torque / lbf.in |
M4 / 10.6-13 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
