600V PBT 16.00mm Black Cable Panel Mount Feed Through Terminal Block Connector Single Deck
-
Highlight
Panel Mount Feed Through Terminal Block
,panel feed-through terminal block Connector
,600V panel feed-through terminal block
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorBlack
-
Number Of ContactsAny Poles Available
-
Pitch16.00mm
-
Rated Current75A
-
Rated Voltage600V
-
TypeFeed Through Terminal Block,Feed Through Terminal Connectors,Electrical Terminal Blocks
-
Wire Range4-22
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTD75-01-C
-
Minimum Order Quantity200
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

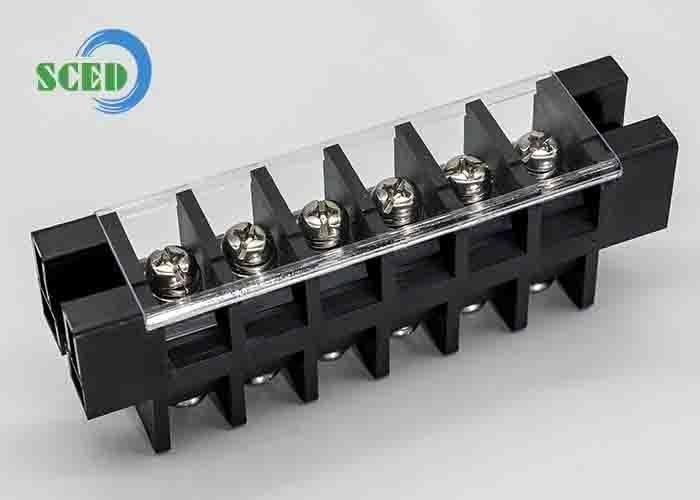

600V PBT 16.00mm Black Cable Panel Mount Feed Through Terminal Block Connector Single Deck
600V PBT 16.00mm Black Cable Feed Through Panel Terminal Block Connector Single Deck
■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

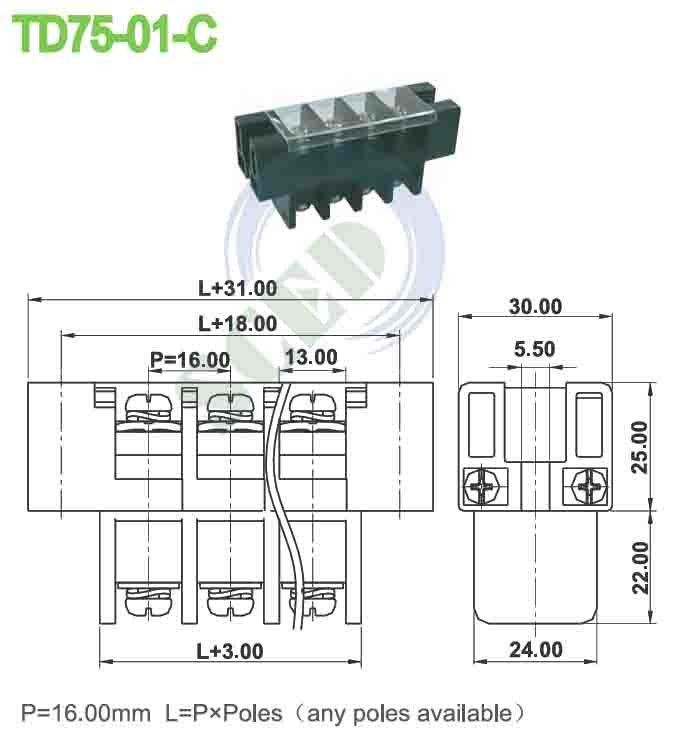

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 75 |
600 / 75 |
600 / 5 |
|
Wire Range AWG |
4-22 |
4-22 |
4-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 75 |
1000 / 75 |
1000 / 75 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
22 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT / UL94, V-0 |
||
|
Conduction Board / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
12-13 |
||
|
Screw / Torque / lbf.in |
M6 / 20-22 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
