101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm

101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm

Products - Feed Through Terminal Block
  • Highlight

    300V Feed Through Terminal Blocks

    ,

    PBT Feed Through Terminal Blocks

    ,

    16.0mm Feed Through Terminal Blocks

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Pitch
    16.0mm
  • Rated Current
    101A
  • Rated Voltage
    300V
  • Type
    Feed Through Terminal Block,Feed Through Terminal Blocks, Feed Through Terminal Connectors
  • Wire Range
    2-10
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TD75-02-C
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm

Get Price Contact Now

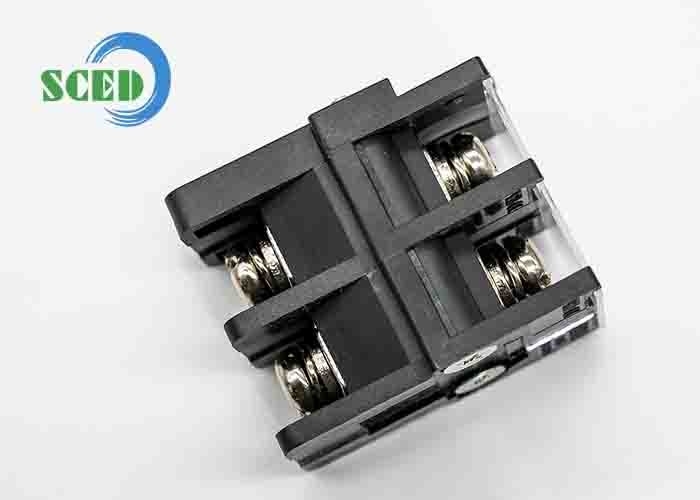

101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm


■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors


How to order:
101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

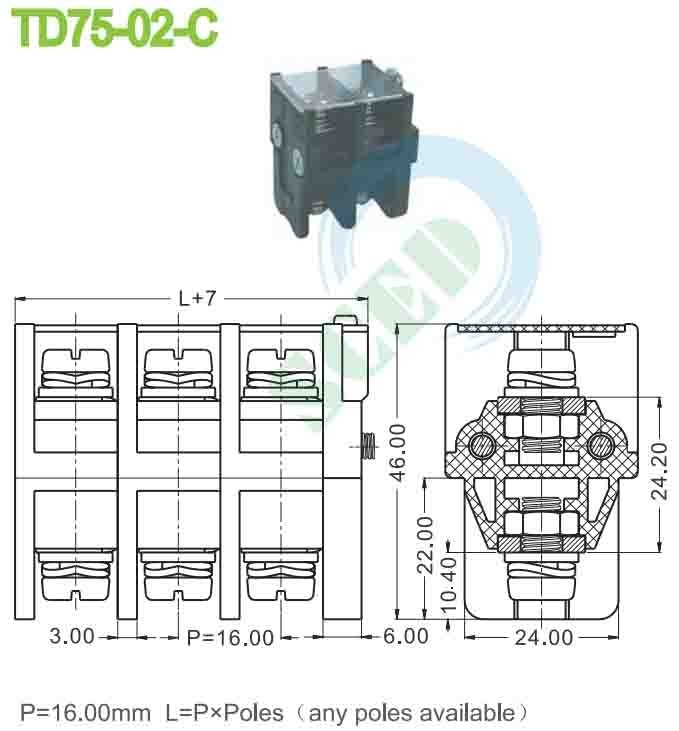

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 101



300 / 10

Wire Range                       AWG

2-10



2-10

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 101

400 / 101

630 / 101

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PBT/ UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

12-13

Screw / Torque                    / lbf.in

M6 / 20-22



101A Perforation Feed Through Terminal Blocks Connectors 300V PBT Pitch 16.0mm 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
