7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P

7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P

Products - Pluggable Terminal Block
  • Highlight

    PCB Pluggable Terminal Block

    ,

    2-16P Pluggable Terminal Block

    ,

    7.50mm Pluggable Terminal Block

  • Type
    Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks
  • Pitch
    7.50mm
  • Number Of Contacts
    6-16P
  • Rated Voltage
    300V
  • Rated Current
    15A
  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508P-75-GY
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P

  • 7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P
  • 7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P
  • 7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P
Get Price Contact Now

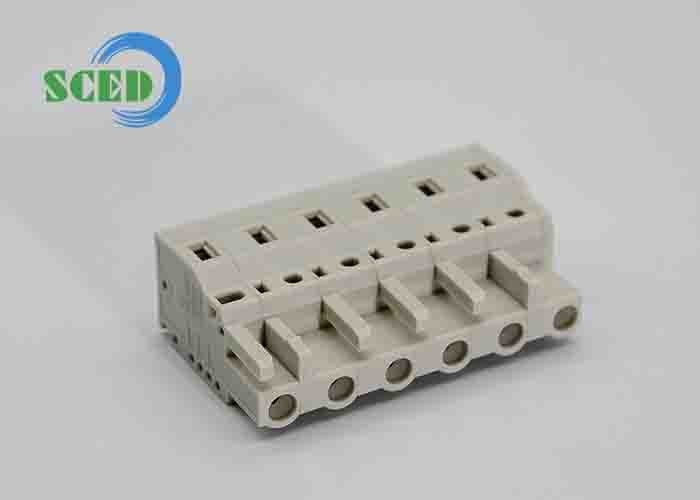

7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P
□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
□Single Level;  ■Double Levels;  □Triple Levels

This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:

7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

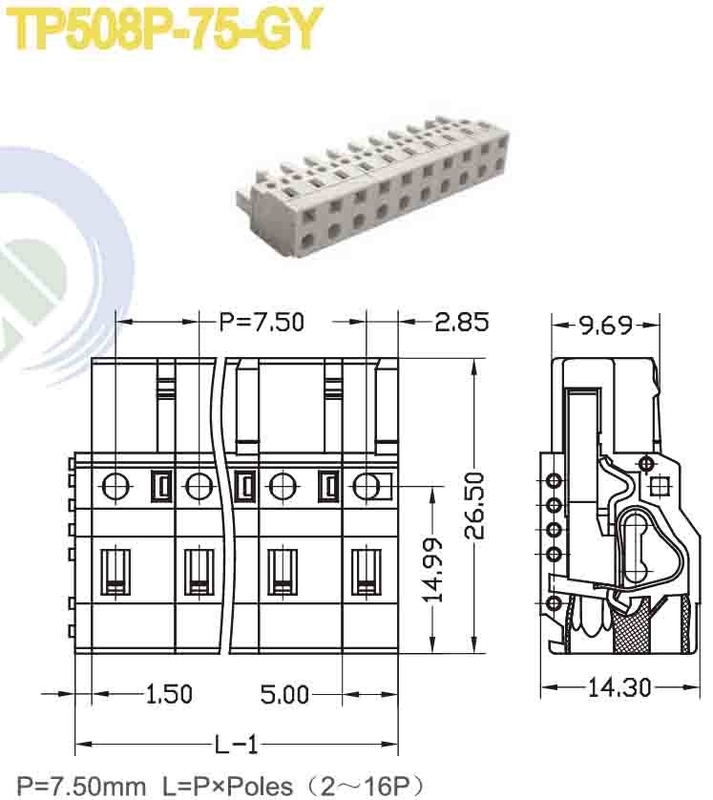

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15





Wire Range                       AWG

       14-26





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 15

320 / 15

630 / 15

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity      mm²2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / PlatingStainless Steel / -

Contactor / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length               mm

10-11

PinDimension                     mm






7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P 1


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
