Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A

Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A

Products - Pluggable Terminal Block
  • Highlight

    7.62mm Pluggable Terminal Blocks

    ,

    12A Pluggable Terminal Blocks

    ,

    300V Pluggable Terminal Blocks

  • Type
    Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks
  • Pitch
    7.62mm
  • Number Of Contacts
    2P-16P
  • Rated Voltage
    300V
  • Rated Current
    12A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508P-80
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A

  • Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A
  • Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A
  • Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A
Get Price Contact Now

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

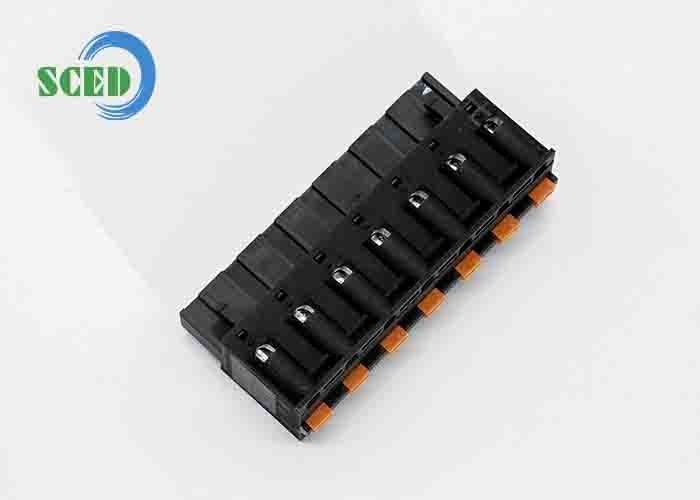

Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A



■Single Level;  □Double Levels;  □Triple Levels

This female plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:

Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A 0

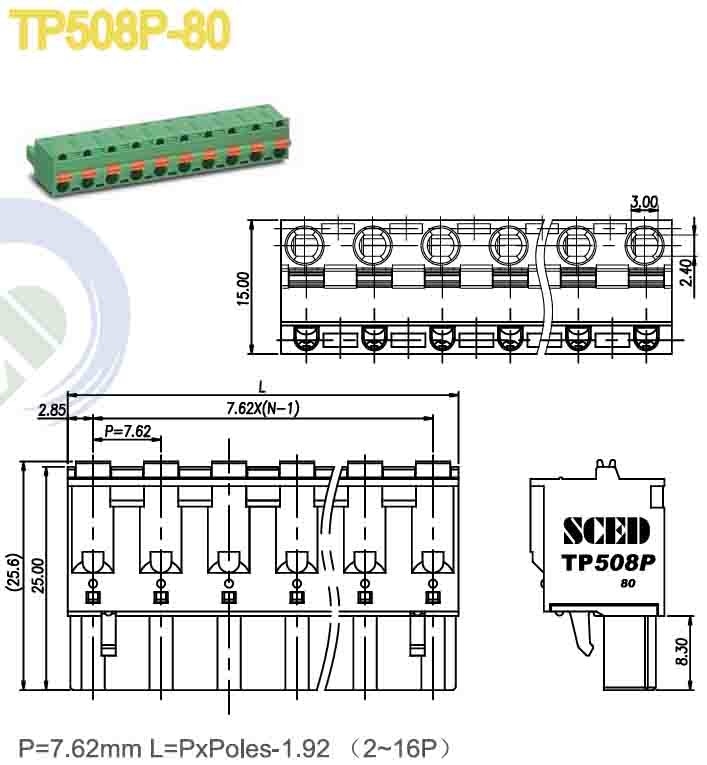

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 12



300 / 10

Wire Range                       AWG







IEC Technical Data







Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400 / 10

630 / 10

800 / 10

Rated Surge Voltage                 KV

     6



6

6

Rated Connecting Capacity           mm2



Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Phosphor Bronze / Tin Plated

Clamp Cage / Plating



Screw / Plating



Other Data



Stripping Length                    mm

               9-10

Screw / Torque                    / lbf.in

           N.A




 Black PA66 Female Pluggable Terminal Blocks Connectors Pitch 7.62mm 300V 12A 1




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
