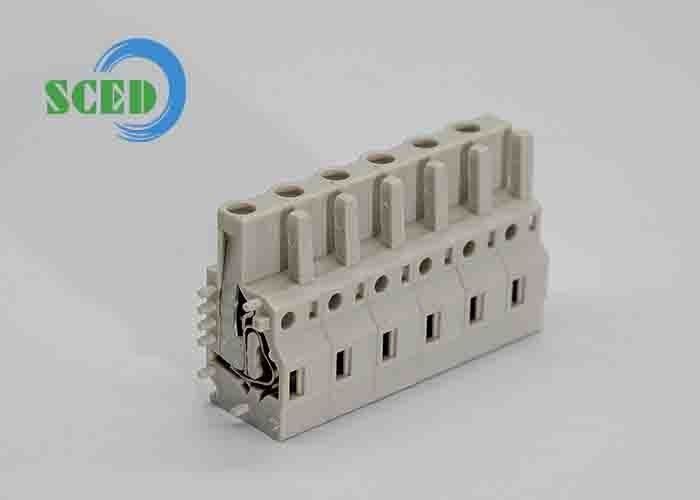

In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level

In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level

Products - Pluggable Terminal Block
  • Highlight

    7.50mm Plug In Terminal Blocks

    ,

    300V Plug In Terminal Blocks

    ,

    15A Plug In Terminal Blocks

  • Type
    Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks
  • Pitch
    7.50mm
  • Number Of Contacts
    2P-16P
  • Wire Range
    14-26
  • Rated Voltage
    300V
  • Rated Current
    15A
  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508P-75-GY
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level

  • In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level
  • In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level
  • In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level
Get Price Contact Now

In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level

■Single Level;  □Double Levels;  □Triple Levels

This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:

 In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

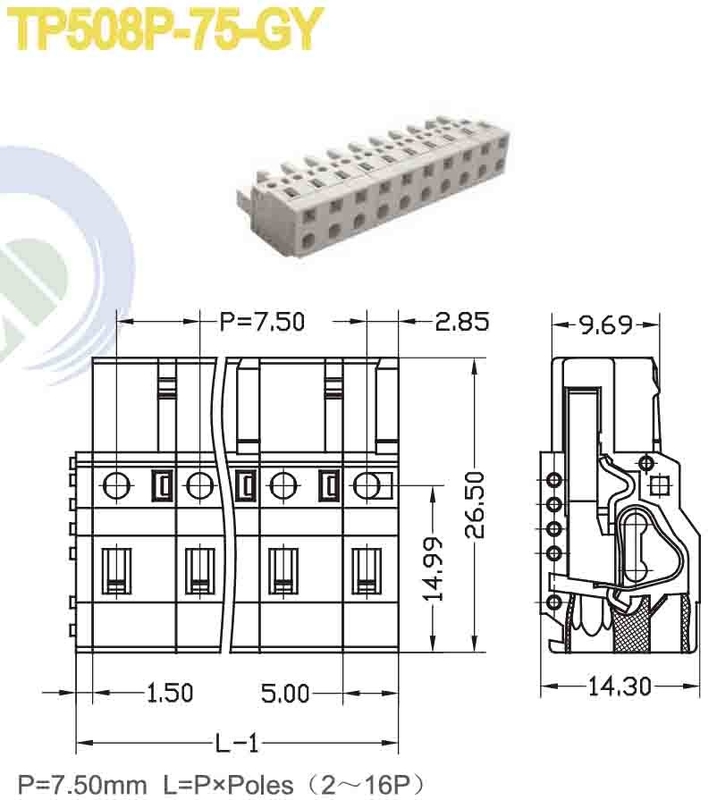

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15





Wire Range                       AWG

14-26





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 15

320 / 15

630 / 15

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage

 Stainless Steel

Contactor / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length                    mm

10-11







 In Sockets Plug In Terminal Blocks Pitch 7.50mm 300V 15A 2P-16P Double Level 1




Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
