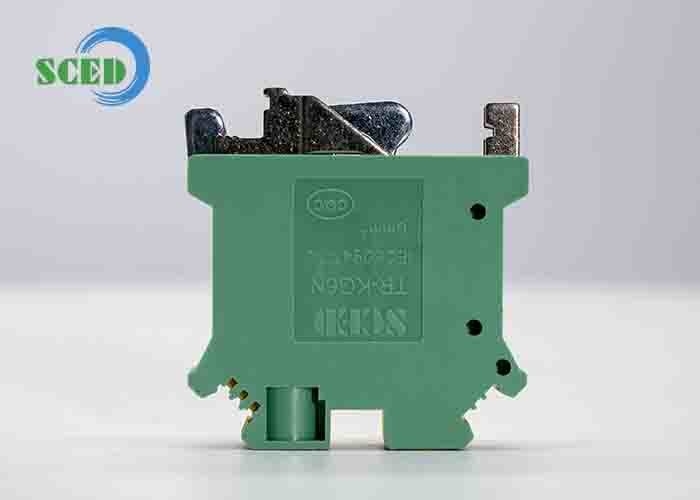

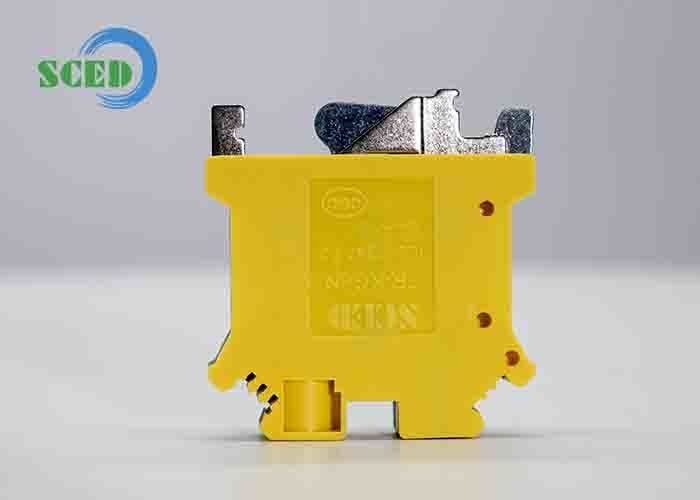

Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation
-
Highlight
Rail Transportation Din Rail Terminal Blocks
,Ground Type Din Rail Terminal Blocks
-
ApprovalsCE, RoHS
-
RangeAWG 24 - AWG 8
-
Terminal Width8.20mm
-
Place of OriginSuzhou, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR-KG6N
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsPackaging Details: Standard export packing carton, or according to customers demand.
-
Delivery Time20-45 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation
Width 8.2mm Din Rail Terminal Blocks Ground Type AWG 24 - 8 Rail Transportation
Detailed product Description:
Terminal Width: 8.2mm, AWG:24-8, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; ■Double decks; □Triple decks
Parameter and Drawing Specifications:
| Description Color | Type |
| Terminal Green & Yellow | TR-KG6N |
| Zack Strip White | ZB8 SZS1.0*4.0 |
| Rail Material | Aluminum / Steel |
| Dimensions | 8.2/42.5 |
| Height (U35: 7.5/U35: 15G 32) mm | 47/54.5/52 |
| Wire Fixing Screw / Torque Nm | M4 / 1.5-1.8 |
| Center Fixing Screw / Torque Nm | M4 / 1.5-1.8 |
| Stripping Length mm | 10 |
Standard color:
Green & Yellow. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
.
Tag:
Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
Our products are sold all over the world, you can rest assured.
