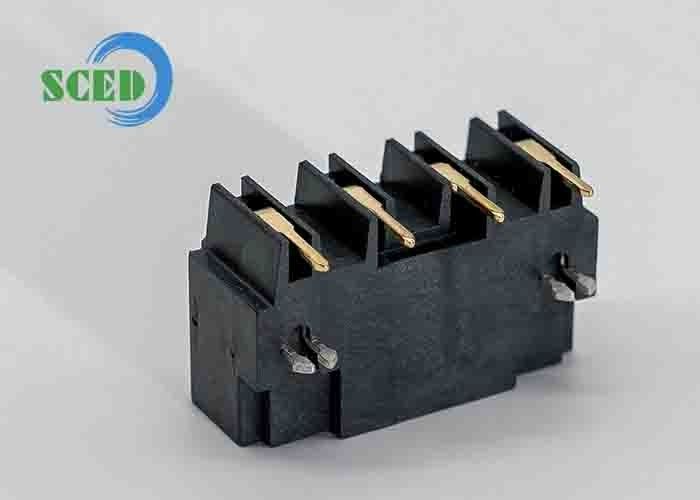

LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A

LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A

Products - Pluggable Terminal Block
  • Highlight

    Black Color Pluggable Terminal Block

    ,

    16A Pluggable Terminal Block

    ,

    300V Pluggable Terminal Block

  • Color
    Black
  • Voltage
    300V
  • Pitch
    7.5mm
  • Current
    16A
  • Poles
    4/6/7/9 Poles
  • Terminal
    Copper
  • Inflammability Class
    UL94, V-0
  • Insulation Material
    LCP
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    CE,UL
  • Model Number
    TP750H-00V-4P-BK
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.018-0.045 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    20-45 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A

  • LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A
  • LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A
  • LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A
Get Price Contact Now

Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A



Detailed product Description:



Header, Male Sockets, Pitch: 7.5mm, 300V 16A, 4/6/7/9P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



This male header match with female plugs’ series: Contact Customer Service



Wire Inlet: ■Right angle wire inlet

Levels: ■Single Level



Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A 0



Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control 2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military and Elevator and so on.



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. High quality but competitive price

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/16 300/16 300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 320 / 16 630 / 16 800 / 16
Rated Surge Voltage KV 4 4 4
Material
Insulation Material / Inflammability Class LCP / UL94, V-0
Terminal / Plating Copper / Gold Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm 0.7*0.9

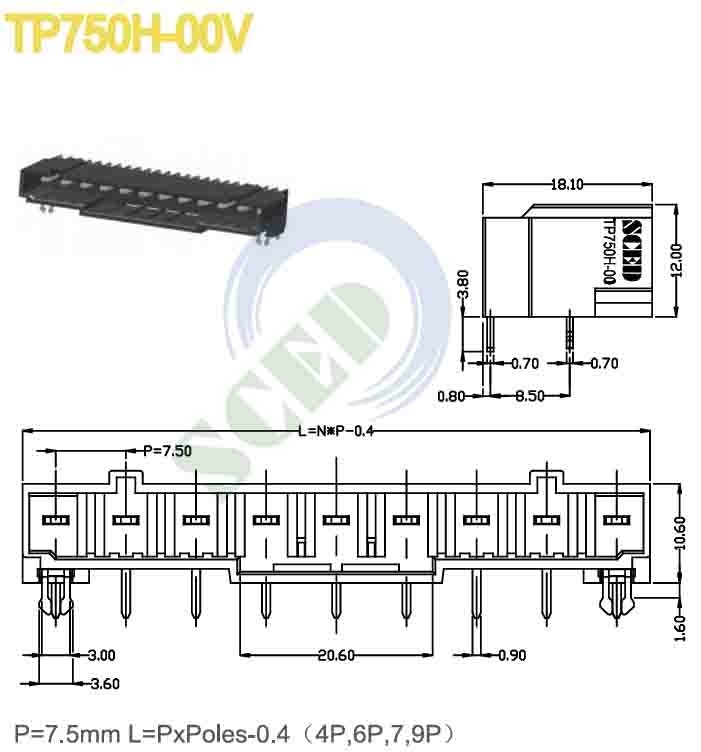

Drawing Photo


LCP Gold Plated Black Color Pluggable Terminal Block With Right Angle 7.5mm 300V 16A 1
