Flexible Design Pluggable Terminal Block 7.5mm 300V 32A with Copper Terminal Competitive UL CE

Flexible Design Pluggable Terminal Block 7.5mm 300V 32A with Copper Terminal Competitive UL CE

Products - Pluggable Terminal Block
  • Highlight

    32A Pluggable Terminal Block

    ,

    300V Pluggable Terminal Block

    ,

    7.5mm Pluggable Terminal Block

  • Color
    Black
  • Voltage
    300V
  • Pitch
    7.5mm
  • Current
    32A
  • Poles
    2-3 Poles
  • Terminal
    Copper
  • Inflammability Class
    UL94, V-0
  • Insulation Material
    PA66+25%GF
  • Place of Origin
    Suzhou, China
  • Brand Name
    SCED
  • Certification
    CE,UL
  • Model Number
    TP750H-02V-3P-BK
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.018-0.045 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    20-45 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

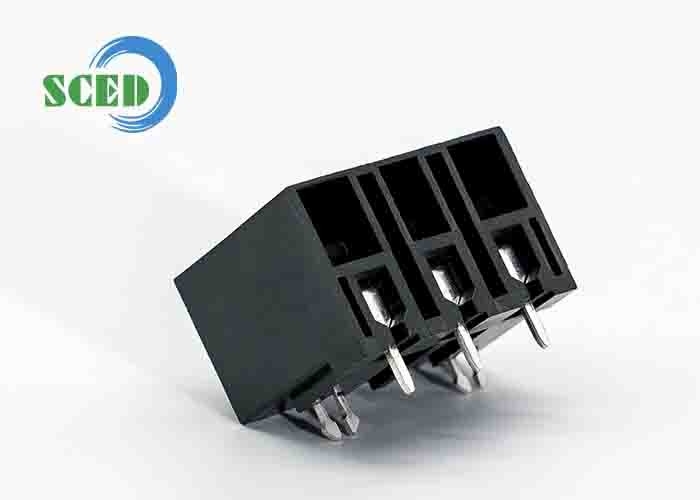

Flexible Design Pluggable Terminal Block 7.5mm 300V 32A with Copper Terminal Competitive UL CE

  • Flexible Design Pluggable Terminal Block 7.5mm 300V 32A with Copper Terminal Competitive UL CE
  • Flexible Design Pluggable Terminal Block 7.5mm 300V 32A with Copper Terminal Competitive UL CE
  • Flexible Design Pluggable Terminal Block 7.5mm 300V 32A with Copper Terminal Competitive UL CE
Get Price Contact Now

Pluggable Terminal Block 7.5mm 300V 32A for Flexible Design Competitive UL CE​



Detailed product Description:



Header, Pitch: 7.5mm, 300V 32A, 2-3P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



This male header match with female plugs’ series: Contact Customer Service



Wire Inlet: ■Right angle wire inlet

Levels: ■Single Level



Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Flexible Design Pluggable Terminal Block 7.5mm 300V 32A with Copper Terminal Competitive UL CE 0



Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control 2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military and Elevator and so on.



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. High quality but competitive price

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/32 300/32 300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 32 800 / 32 1000 / 32
Rated Surge Voltage KV 6 6 6
Material
Insulation Material / Inflammability Class PA66+25%GF / UL94, V-0
Terminal / Plating Copper / Tin Plated
Other Data
PCB Hole Diameter mm φ1.6
Pin Dimension mm 0.8*0.9

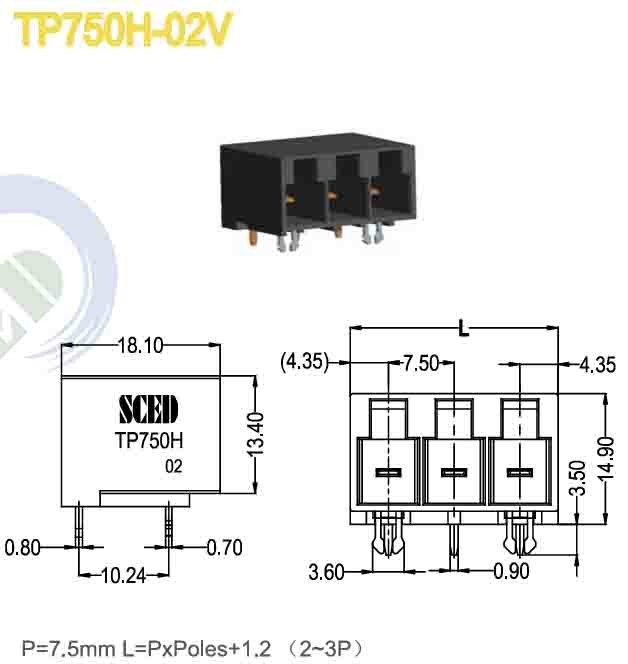

Drawing Photo

Flexible Design Pluggable Terminal Block 7.5mm 300V 32A with Copper Terminal Competitive UL CE 1
