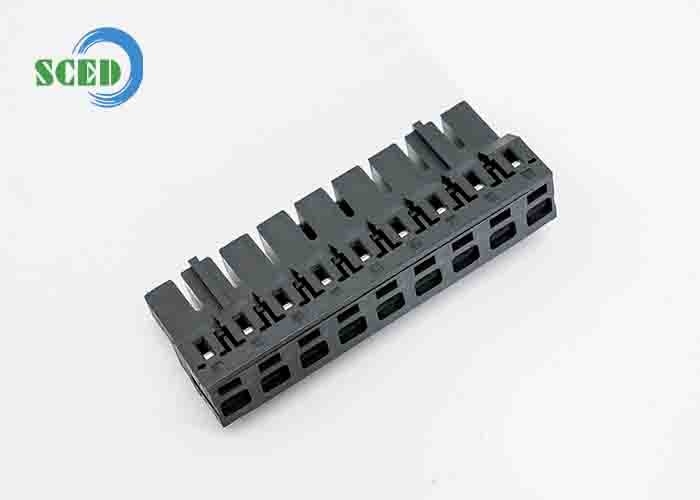

Pluggable Terminal Block Connector 7.5mm Pitch 300V 16A 2-18 Poles PA66
Detailed product Description:
Plug, Female Sockets, Pitch: 7.50mm, 300V 16A, 2P-18P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
Levels: ■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: Contact Customer Service
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
How to order:

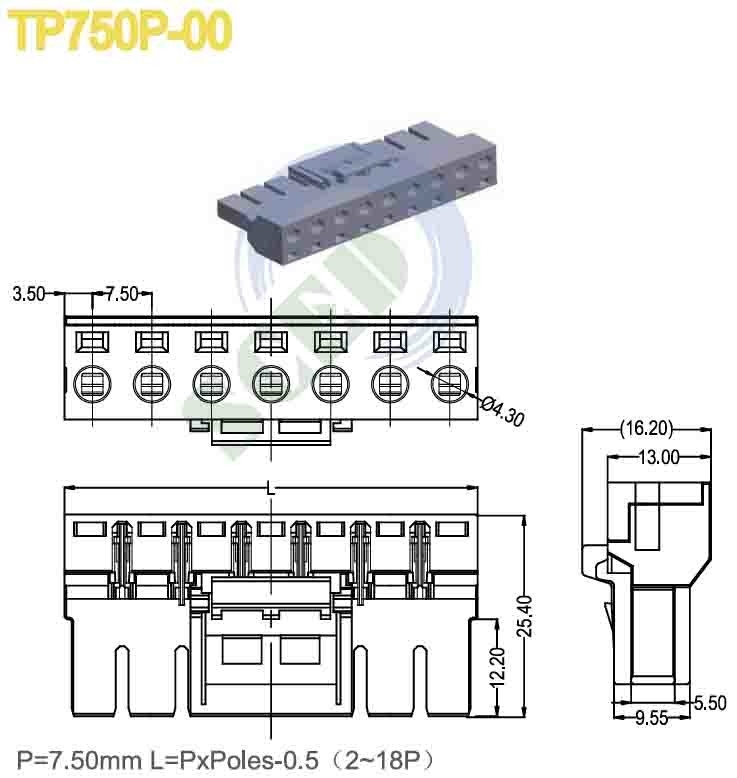

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 16 | ||
| Wire Range AWG | N.A | ||
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 16 | 630 / 16 | 800 / 16 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | N.A | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66+25%GF / UL94, V-0 | ||
| Clamp Cage / Plating | N.A | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | N.A | ||
| Other Data | |||
| Stripping Length mm | 8-9 | ||
| Screw / Torque / lbf.in | N.A | ||
Competitive Advantage:
Drawing Photo
Applications:
Normally, our products can be used in following:
1. Communication, Power Supply, Industrial Control, Medical Equipment
2. Security, PCB, Automation, Military, Rail Transportation
3. Server Site, Switch, Electric Lighting, Frequency Converter etc.
Our services cover all industries and reach all parts of the world.
