Female Pluggable Terminal Block Connector 7.6mm Pitch 150V 8A 2*9 Poles PA66

Female Pluggable Terminal Block Connector 7.6mm Pitch 150V 8A 2*9 Poles PA66

Products - Pluggable Terminal Block
  • Highlight

    150V Pluggable Terminal Block

    ,

    Female Pluggable Terminal Block

    ,

    8A Pluggable Terminal Block

  • Color
    GreY
  • Type
    Female Part
  • Pitch
    7.6mm
  • Voltage
    150V
  • Current
    8A
  • Screw
    N.A
  • Plastic
    PA66
  • Stripping Length
    8-10mm
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    CE,UL
  • Model Number
    TP760-03-9P-GY25
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.051-0.12 per pole
  • Packaging Details
    Standard export packing carton, or according to customers demand.
  • Delivery Time
    20-45 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Female Pluggable Terminal Block Connector 7.6mm Pitch 150V 8A 2*9 Poles PA66

  • Female Pluggable Terminal Block Connector 7.6mm Pitch 150V 8A 2*9 Poles PA66
  • Female Pluggable Terminal Block Connector 7.6mm Pitch 150V 8A 2*9 Poles PA66
  • Female Pluggable Terminal Block Connector 7.6mm Pitch 150V 8A 2*9 Poles PA66
Get Price Contact Now

Female Pluggable Terminal Block Connector 7.6mm Pitch 150V 8A 2*9 Poles PA66



Detailed product Description:



Plug, Female Sockets, Pitch: 7.60mm, 150V 8A, 2*9P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



Levels: ■Single Level; □Double Levels; □Triple Levels



This female plug match with male sockets’ series: Contact Customer Service



Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



Female Pluggable Terminal Block Connector 7.6mm Pitch 150V 8A 2*9 Poles PA66 0

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 150 / 8
Wire Range AWG N.A
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 63 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Rated Connecting Capacity mm2 N.A
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating N.A
Terminal / Plating C5191 / Tin Plated
Screw / Plating N.A
Other Data
Stripping Length mm 8-10
Screw / Torque / lbf.in N.A





Competitive Advantage:



  1. OEM and ODM service available
  2. More than 1000 models for selection
  3. High quality and competitive price
  4. Good service and quick response

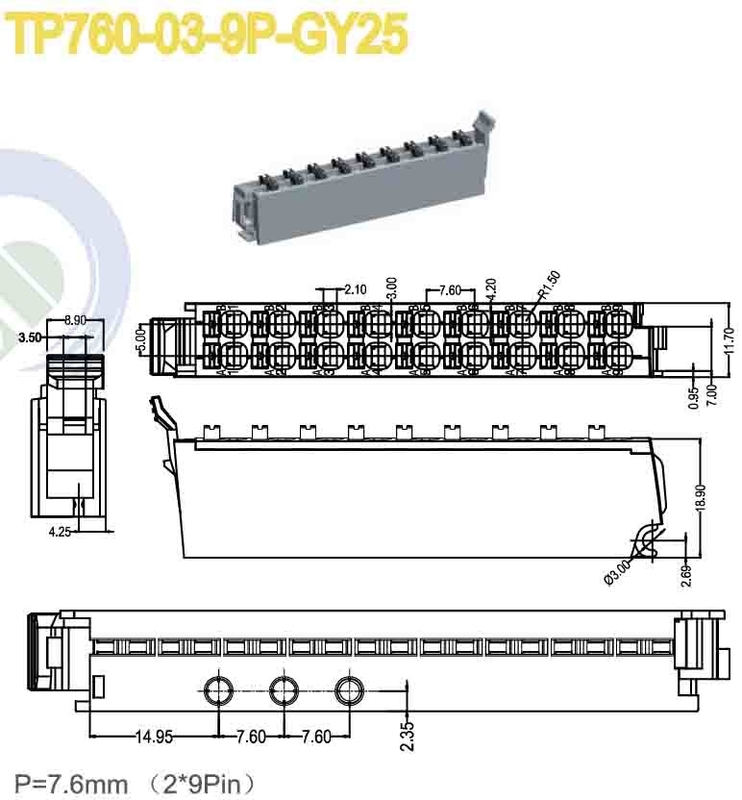

Drawing Photo

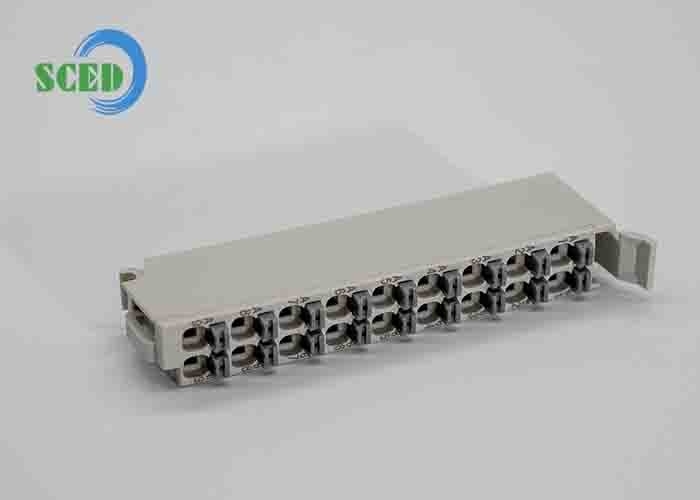

Female Pluggable Terminal Block Connector 7.6mm Pitch 150V 8A 2*9 Poles PA66 1

Applications:



Normally, our products can be used in following:



1. Communication, Power Supply, Industrial Control, Medical Equipment

2. Security, PCB, Automation, Military, Rail Transportation

3. Server Site, Switch, Electric Lighting, Frequency Converter etc.
