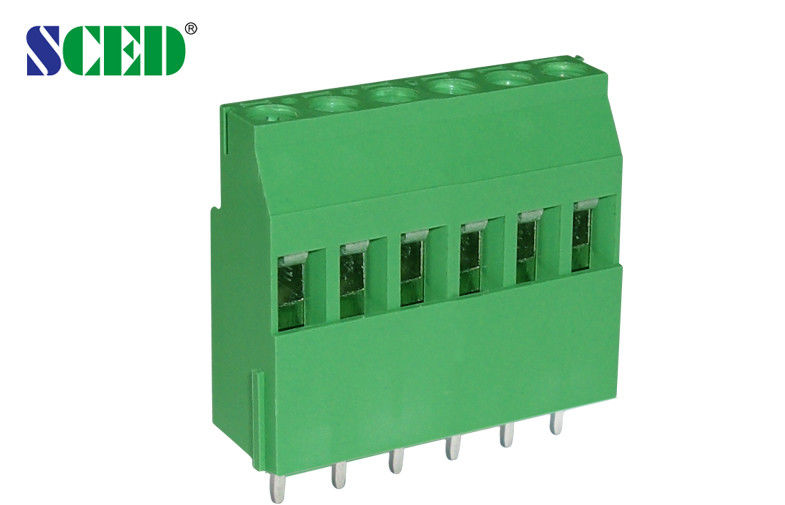

Euro Type Screw Connection Terminal Block 300V 10A PA66 Brass Terminal

Euro Type Screw Connection Terminal Block 300V 10A PA66 Brass Terminal

Products - PCB Screw Terminal Block
  • Highlight

    PA66 Screw Connection Terminal Block

    ,

    300V 10A Screw Connection Terminal Block

    ,

    Euro Type Screw Connection Terminal Block

  • Pitch
    5.08mm
  • Poles
    Any Poles Available
  • Terminal
    Brass
  • Type
    Screw
  • Current
    10A
  • Voltage
    300V
  • Plastic
    PA66
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Contact Resistance
    Less Than 8mΩ
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    UL,CUL,CE,VDE,CQC etc.
  • Model Number
    TJ508-08
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.034-0.068 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Euro Type Screw Connection Terminal Block 300V 10A PA66 Brass Terminal

  • Euro Type Screw Connection Terminal Block 300V 10A PA66 Brass Terminal
  • Euro Type Screw Connection Terminal Block 300V 10A PA66 Brass Terminal
Get Price Contact Now

Euro Type PCB Screw Terminal Block 300V 10A PA66 Brass Terminal





Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.6

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Euro Type Screw Connection Terminal Block 300V 10A PA66 Brass Terminal 0Euro Type Screw Connection Terminal Block 300V 10A PA66 Brass Terminal 1
