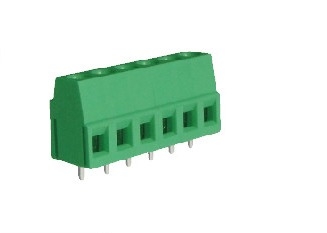

5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color

5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color

Products - PCB Screw Terminal Block
  • Highlight

    Green Color PCB Screw Terminal Block

    ,

    M3 PCB Screw Terminal Block

    ,

    300V 10A PCB Screw Terminal Block

  • Screw
    M3
  • Pitch
    5.08mm
  • Color
    Green
  • Current
    10A
  • Voltage
    300V
  • Poles
    2-24 Poles
  • Clamp Cage
    Brass
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    Guangdong, China
  • Brand Name
    SCED
  • Certification
    CE,UL
  • Model Number
    TJ508-14
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.042-0.082
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color

  • 5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color
  • 5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color
Get Price Contact Now

Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series



Wire Inlet: ■Right angle wire inlet

Decks: ■Single Deck

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.



5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3


Applications:



Normally our products will be used in a lot of fileds and industries, for example:



Medical Equipment, PCB, Military, Switch, Communication, Automation, Power Supply, Industrial Control, Security,  Frequency Converters and Server Site and so on.



Competitive Advantage:



  1. OEM an
  2. d ODM service
  3. More than 1000 models for selection
  4. High quality but competitive price
  5. Good after-sales service

5.08mm Pitch PCB Screw Terminal Block 300V 10A M3 2-24 Poles Green Color 1
