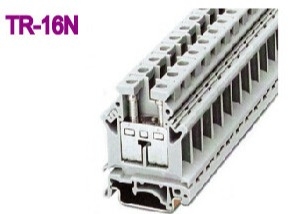

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width

Products - Din Rail Terminal Blocks
  • Highlight

    12.2mm Din Rail Terminal Blocks

    ,

    25mm2 Din Rail Terminal Blocks

    ,

    800V Din Rail Terminal Blocks

  • Terminal Width
    12.2mm
  • Current
    101A
  • Voltage
    800V
  • Type
    Din Rail
  • Material
    Brass
  • Color
    Grey
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Contact Resistance
    Less Than 8mΩ
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TR-16N
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.45-0.85 per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 working day
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width

  • 101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width
  • 101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width
Get Price Contact Now

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width



Detailed product Description:



Terminal width: 12.2mm, 600V 85A, AWG:22-4, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

They can be used in: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:

Description                    Color

Type

Terminal                       Grey

TR-16N

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width 0End Cover                      Grey



D-TR-3/16

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width 1Fixed Bridge



FBI 10-12        Imax: 101A

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width 2Insertion Bridge



EB 10-12        Imax: 70A

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width 3Separating Plate



TS-K

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width 4Partition Plate



ATP-TR

Zack Strip                      White

ZB10

Screwdriver

SZS 1.0×4.0

Rail Material

aluminum

Dimensions                             mm

            12.2/42.5/2.0

Height (U35: 7.5/U35: 15G 32)              mm

54/61.5/59

Screw / Torque                           Nm

M4 / 1.5-1.8

Stripping Length                          mm

11

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

             101 / 25

Rated Surge Voltage / Contamination Class    KV / -

              8 / 3

Surge Voltage Category

               Ⅲ



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response and good after-sales service
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

101A Din Rail Terminal Blocks 800V 25mm2 Brass 12.2mm Terminal Width 5
