| Place of Origin: | Guangdong, China |
| Brand Name: | SCED |
| Certification: | CE,UL |
| Model Number: | TJ508-14 |
| Minimum Order Quantity: | 1000 Piece/Pieces |
|---|---|
| Price: | USD 0.042-0.082 |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Screw: | M3 | Pitch: | 5.08mm |
|---|---|---|---|
| Color: | Green | Current: | 10A |
| Voltage: | 300V | Poles: | 2-24 Poles |
| Clamp Cage: | Brass | Rated Surge Voltage: | No Abnormal Within 1 Minute |
| Insulation Resistance: | Above DC500V, 500MΩ | Contact Resistance: | Less Than 8mΩ |
| High Light: | Green Color PCB Screw Terminal Block,10A PCB Screw Terminal Block,300V PCB Screw Terminal Block |
||
Detailed product Description:

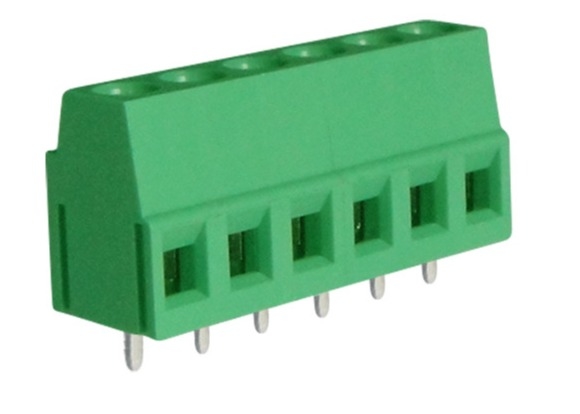

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
Wire Inlet: ■Right angle wire inlet
Decks: ■Single Deck
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.

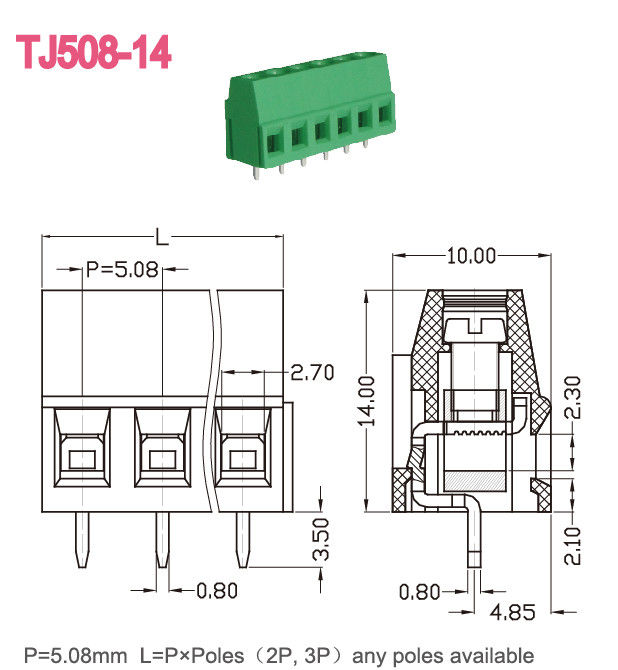

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | 300/10 | |
| Wire Range AWG | 12-26 | 12-26 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 250 / 10 | 400 / 10 | 630 / 10 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Stripping Length mm | 6-7 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Applications:
Normally our products will be used in a lot of fileds and industries, for example:
Medical Equipment, PCB, Military, Switch, Communication, Automation, Power Supply, Industrial Control, Security, Frequency Converters and Server Site and so on.
Competitive Advantage:
