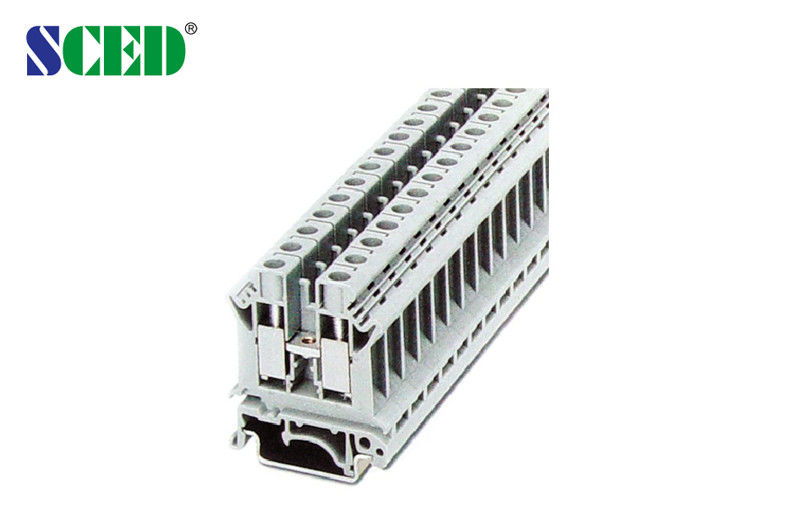

Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length

Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length

Products - Din Rail Terminal Blocks
  • Highlight

    Easy Installation Din Rail Terminal Block

    ,

    10mm Din Rail Terminal Block

    ,

    76A Din Rail Terminal Block

  • Terminal Width
    10.2mm
  • Current
    76A
  • Voltage
    600V
  • Stripping Length
    10mm
  • Material
    Brass
  • Inflammability Class
    UL94, V-0
  • Contact Resistance
    Less Than 8mΩ
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Wire Range
    24-6AWG
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC and VDE etc.
  • Model Number
    TR-10N
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.215-0.501
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length

  • Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length
  • Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length
  • Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length
Get Price Contact Now

16mm2 Din Power Terminal Block 800v / 76A Brass 10mm Stripping Length



Detailed product Description:



Terminal width: 10.2mm, 600V 65A, AWG:24-6, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:

Description                    Color

Type

Terminal                       Grey

TR-10N

Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length 0End Cover                      Grey



D-TR-3/16

Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length 1Fixed Bridge



FBI 10-10        Imax: 76A

Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length 2Insertion Bridge



EB 10-10         Imax: 76A

Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length 3Separating Plate



TS-K

Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length 4Partition Plate



ATP-TR

Zack Strip                      White

ZB10

Screwdriver

SZS 1.0×4.0

Rail Material

aluminum

Dimensions                             mm

            10.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M4 / 1.5-1.8

Stripping Length                          mm

10

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

             76 / 16

Rated Surge Voltage / Contamination Class    KV / -

              8 / 3

Surge Voltage Category

               Ⅲ



Competitive Advantage:



  1. Good quality
  2. Competitive price
  3. Good after-sales service
  4. Full range products for selection
  5. OEM and ODM service
  6. Safety certifications

Easy Installation 16mm2 Din Rail Terminal Block 800v / 76A Brass 10mm Stripping Length 5
