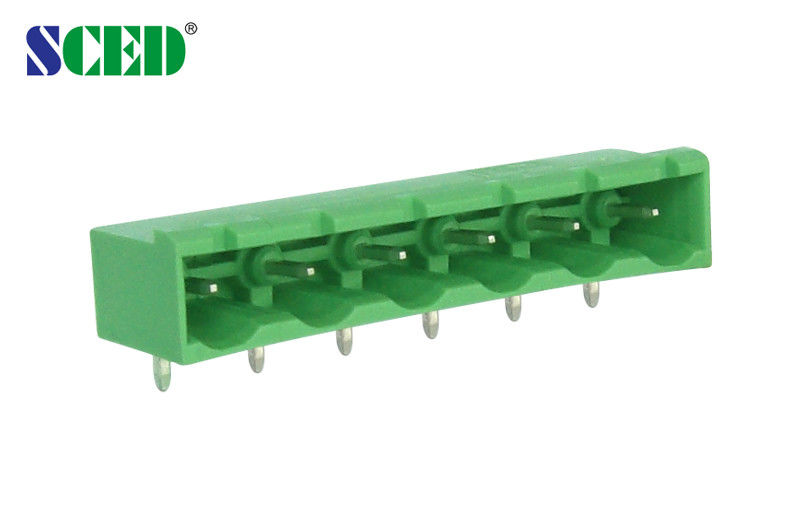

Male Pluggable Terminal Block Green Color Right Angle 7.62mm 300V 18A



Detailed product Description:



Header, Male Sockets, Pitch: 7.62mm, 300V 18A, 2-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79



Wire Inlet: ■Right angle wire inlet

Levels: ■Single Level



Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.



Applications:



1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control 2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military and Elevator and so on.



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. High quality but competitive price

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18   300/18
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm 1.0 x 1.0



Male Pluggable Terminal Block 7.62mm 300V 18A for Flexible Design Competitive UL Technical Data 0
