| Place of Origin: | Guangdong China |
| Brand Name: | SCED |
| Certification: | CE,UL,CUL,CQC,VDE |
| Model Number: | TR-10N-04 |
| Minimum Order Quantity: | 1000 Piece/Pieces |
|---|---|
| Price: | USD 0.1-0.25 |
| Packaging Details: | Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198 |
| Delivery Time: | 5-20 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Color: | Grey | Insulation Material: | PA66 |
|---|---|---|---|
| Voltage: | 300V | Current: | 65A |
| Terminal Width: | 10.1mm | Material: | Brass |
| Plating: | Nickel Plating | Rated Surge Voltage: | No Abnormal Within 1 Minute |
| Inflammability Class: | UL94, V-0 | Contact Resistance: | Less Than 8mΩ |
| High Light: | 65A Through Panel Terminal Blocks,10.1mm Through Panel Terminal Blocks,Brass Through Panel Terminal Blocks |
||

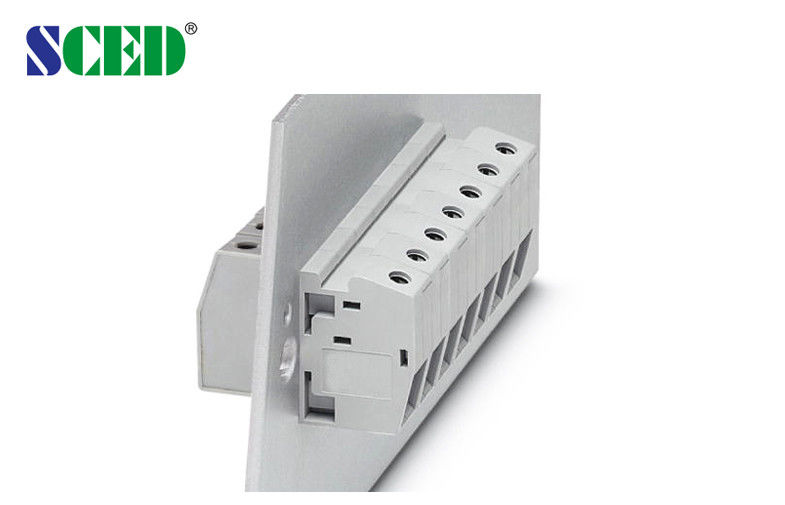

10.1mm Terminal Width Through Panel Terminal Blocks Brass UL94 V0 65A
Detailed product Description:
Pitch 10.1mm, 300V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors
■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■ Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting
2. Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

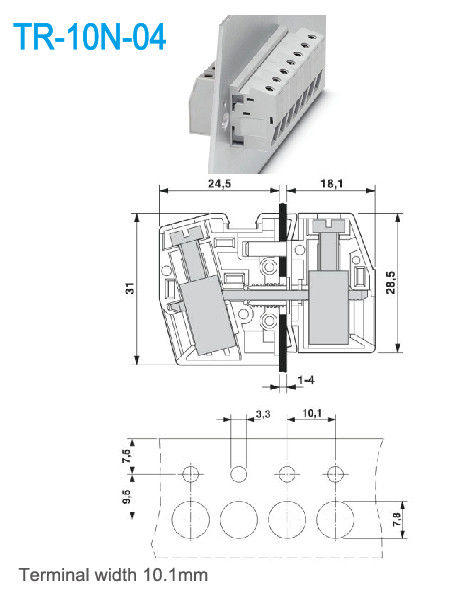

Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 65 |
|
300 / 10 |
|
Wire Range AWG |
6-24 |
|
6-24 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 76 |
800 / 76 |
1000 / 76 |
|
Rated Surge Voltage KV |
6 |
6 |
6 |
|
Rated Connecting Capacity mm2 |
10 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Conduction Board / Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
11 |
||
|
Screw / Torque / lbf.in |
M4 / 10.6-13 |
||
Competitive Advantage:
