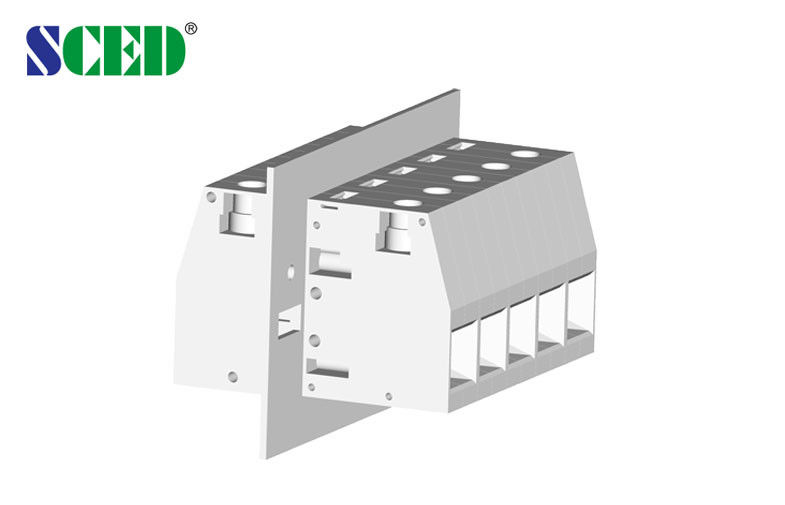

600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle

600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle

Products - Through Panel Terminal Blocks
  • Highlight

    150A Through Panel Terminal Blocks

    ,

    18.8mm Pitch Through Panel Terminal Blocks

    ,

    24 Pole Through Panel Terminal Blocks

  • Pitch
    18.8mm
  • Current
    150A
  • Voltage
    600V
  • Color
    Grey
  • Screw
    M3
  • Contact Resistance
    Less Than 8mΩ
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Pole
    2-24 Poles
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE, UL, CUL, CQC, VDE etc.
  • Model Number
    TR-50N-02
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.864-1.628 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle

  • 600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle
  • 600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle
Get Price Contact Now

600V/150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle



Detailed product Description:



Pitch 18.8mm, 600V 150A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 150



600 / 5

Wire Range                       AWG

6-1/0



6-1/0

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

830 / 150

1000 / 150

1000 / 150

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

50

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

24

Screw / Torque                    / lbf.in

M6 / 38-40



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand600V 150A Through Panel Terminal Blocks Pitch 18.8mm 2-24 Pole Right Angle 0
