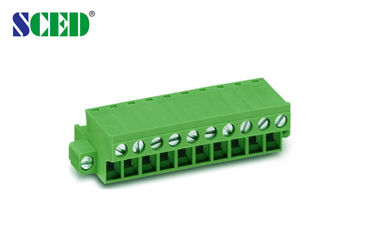

10A Panel Mount Pluggable Terminal Block Withstanding Voltage 3000V AC / Minute

10A Panel Mount Pluggable Terminal Block Withstanding Voltage 3000V AC / Minute

  • 10A Panel Mount Pluggable Terminal Block Withstanding Voltage 3000V AC / Minute
10A Panel Mount Pluggable Terminal Block Withstanding Voltage 3000V AC / Minute
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: UL, CE
Contact Now
Detailed Product Description
Wire Gauge: 22-14 AWG Poles: 2-24
Type: Terminal Block Pitch: 5.0mm
Color: Gray/Black Voltage Rating: 250V
Mounting Type: Panel Mount Termination Type: Screw
High Light:

10A Panel Mount Pluggable Terminal Block


Pluggable Terminal Block 3000V

10A Panel Mount Pluggable Terminal Block Withstanding Voltage 3000V AC/Minute

Product Description:

Our Pluggable Terminal Block is a durable, reliable, and cost-effective electrical connector designed for superior performance. With a current rating of 10A, insulation resistance of over 1000MΩ, mounting type of panel mount, voltage rating of 250V, and withstanding voltage of 3000V AC/minute, this connector provides a safe and secure connection that is ideal for a variety of applications. Our Pluggable Terminal Block's design features a unique combination of robustness, flexibility, and versatility, allowing for easy installation and removal. The connector can be used in both indoor and outdoor environments, making it suitable for a wide range of applications. The Pluggable Terminal Block is a reliable connector that provides an excellent connection performance, making it an ideal choice for any industrial or commercial setup. It is also designed with a long-term performance in mind, ensuring that it is able to withstand harsh conditions. Our Pluggable Terminal Block is the perfect choice for any job that requires a secure and reliable connection.



  • Product Name: Pluggable Terminal Block
  • Current Rating: 10A
  • Wire Gauge: 22-14 AWG
  • Material: Plastic/Metal
  • Pitch: 5.0mm
  • Insulation Resistance: >1000MΩ

Technical Parameters:

Parameter Value
Product Name Pluggable Terminal Block
Material Plastic/Metal
Wire Gauge 22-14 AWG
Current Rating 10A
Insulation Resistance >1000MΩ
Voltage Rating 250V
Pitch 5.0mm
Poles 2-24
Termination Type Screw
Color Gray/Black


Pluggable Terminal Block

SCED Pluggable Terminal Block is an ideal choice for various applications. It is designed with high-quality plastic or metal material, and is capable of withstanding up to 3000V AC/minute. The voltage rating of the terminal block is up to 250V, and the mounting type is panel mount. Besides, it can operate in the temperature range of -25°C to +85°C. Most importantly, the Pluggable Terminal Block is certified by UL and CE, so it is a safe and reliable product.

Pluggable Terminal Block is widely used in the fields of electrical engineering, telecommunications, and automotive industry. It is convenient for users to plug and unplug components, making the maintenance and servicing tasks much easier. In addition, Pluggable Terminal Block also helps save a lot of time when it comes to wiring. People can make the wiring in a fast and efficient manner.

For these reasons, Pluggable Terminal Block manufactured by SCED is well-regarded by customers from all over the world. It is a perfect solution for any application that requires pluggable and reliable terminal block.



SCED Connector offers Pluggable Terminal Block with outstanding performance and reliability. This connector is UL and CE certified, and has a 5.0mm pitch. It has a withstanding voltage of 3000V AC/minute and a screw termination type, making it ideal for industrial applications. Our Pluggable Terminal Block is sure to provide you with the highest quality and best performance. Choose SCED Connector for your connector needs.


Packing and Shipping:

Packaging and Shipping

The Pluggable Terminal Block is packaged and shipped in accordance with the following procedures:

  1. The product is securely packaged in a box or container.
  2. The box or container is labeled with the product information.
  3. The package is placed in a larger shipping container.
  4. The shipping container is labeled with the product and shipping information.
  5. The package is shipped according to the customer's specifications.
