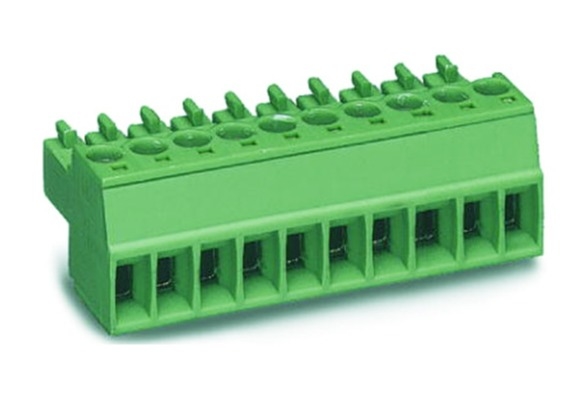

22-14 AWG Pluggable Terminal Block With 3000V AC/Minute Withstanding Voltage

22-14 AWG Pluggable Terminal Block With 3000V AC/Minute Withstanding Voltage

  • 22-14 AWG Pluggable Terminal Block With 3000V AC/Minute Withstanding Voltage
22-14 AWG Pluggable Terminal Block With 3000V AC/Minute Withstanding Voltage
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: UL, CE
Contact Now
Detailed Product Description
Wire Gauge: 22-14 AWG Withstanding Voltage: 3000V AC/minute
Operating Temperature: -25°C To +85°C Current Rating: 10A
Voltage Rating: 250V Mounting Type: Panel Mount
Product Name: Pluggable Terminal Block Termination Type: Screw
High Light:

14 AWG Pluggable Terminal Block


22 AWG Pluggable Terminal Block

2-24 Poles Pluggable Terminal Block with 3000V AC/Minute Withstanding Voltage

Product Description:

Pluggable Terminal Block is a connector that allows quick and easy connection of two wires. It has an insulation resistance of over 1000MΩ and is made of high-quality plastic and metal materials. The pitch of the pluggable terminal block is 5.0mm, and the termination type is screw. With an excellent performance, Pluggable Terminal Block ensures a secure connection and provides reliable performance in various applications. The product is widely used in a variety of industrial applications, such as power supplies, automation systems, control systems and more. It is designed to meet the highest standards, providing reliable and safe connections in any environment.



  • Product Name: Pluggable Terminal Block
  • Connector Type: Pluggable
  • Mounting Type: Panel Mount
  • Poles: 2-24
  • Colors: Gray/Black
  • Type: Terminal Block

Technical Parameters:

Parameter Value
Connector Type Pluggable Terminal Block
Color Gray/Black
Mounting Type Panel Mount
Material Plastic/Metal
Poles 2-24
Current Rating 10A
Type Terminal Block
Insulation Resistance >1000MΩ
Termination Type Screw
Wire Gauge 22-14 AWG
Operating Temperature -25°C To +85°C


SCED Pluggable Terminal Block Connector, UL/CE Certified

SCED Pluggable Terminal Block Connector is designed to be used in demanding applications. With an operating temperature range of -25°C to +85°C, this connector is built to withstand a wide range of temperatures. Also, it has a current rating of 10A and a wire gauge of 22-14 AWG, providing a secure connection. Made of high-quality plastic/metal material, its mounting type is panel mount. This terminal block connector is UL and CE certified for safety and reliability.

SCED Pluggable Terminal Block Connector is suitable for a variety of industrial, audio-visual, and commercial applications. It is widely used in the automotive industry, power plants, manufacturing, and other engineering industries. These connectors are used to connect circuits and equipment, ensuring a secure and reliable connection. In addition, they are highly resistant to dust, dirt, and other environmental elements, making them reliable and durable.

SCED Pluggable Terminal Block Connector is an ideal choice for applications needing reliable and secure connections. It is designed for easy installation and maintenance, making it a great choice for industrial, audio-visual, and commercial settings. With its UL and CE certification, this terminal block connector is designed for long-term performance and safety. Get the best performance out of your equipment with SCED Pluggable Terminal Block Connector.



SCED Pluggable Connector Terminal Block provides the best quality mounting type and poles for connector applications. It is certified to UL and CE standards and is designed for panel mount applications. It has a withstanding voltage of 3000V AC/minute, insulation resistance of >1000MΩ and voltage rating of 250V.

SCED Pluggable Connector Terminal Block is available in a variety of poles, ranging from 2-24, to meet the needs of various connector applications. Our terminal blocks are designed for easy installation, ensuring reliability and superior performance in various applications. Our Pluggable Connector Terminal Blocks are designed to provide the highest quality and value.


Packing and Shipping:

Packaging and Shipping

Pluggable Terminal Block is shipped in a standard product packaging box, which includes:

  • Pluggable Terminal Block
  • Installation manual
  • Screws and mounting hardware

The package is secured with bubble wrap and placed in a corrugated box for shipping. All orders are shipped with a tracking number.
