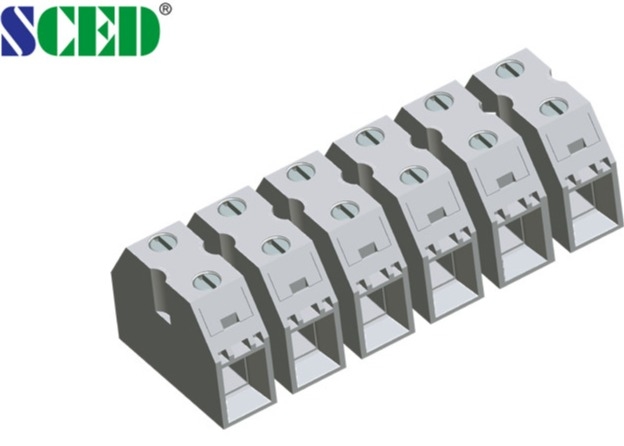

2-16 Poles 50A Feed Through Terminal Block Pitch 13.5mm Copper

2-16 Poles 50A Feed Through Terminal Block Pitch 13.5mm Copper

  • 2-16 Poles 50A Feed Through Terminal Block Pitch 13.5mm Copper
2-16 Poles 50A Feed Through Terminal Block Pitch 13.5mm Copper
Product Details:
Place of Origin: Guangdong, China
Brand Name: SCED
Certification: UL,CE,CUL,CQC,VDE etc.
Model Number: TR-6N-01
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.148-0.29 Per Pole
Packaging Details: Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Insulation Material: PA66 Inflammability: UL94 V0
Screw: Steel Stripping Length: 7-8
Voltage: 600V Current: 50A
Wire Range: 8-26 AWG Pitch: 13.5mm
Conduction Board: Copper Clamp Cage: Brass
High Light:

UL Feed Through Terminal Block

,

50A Copper Terminal Block

,

Pitch 13.5mm Copper Terminal Block

50A 600V Feed Through Terminal Block Pitch 13.5mm 2-16 Poles Copper





Detailed product Description:



Pitch 13.50mm, 600V 50A, 2-16P, Feed Through Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 50

600 / 50

600 / 5

Wire Range                       AWG

8-26

8-26

8-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 57

1000 / 57

1000 / 57

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Clamp Cage / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M4 / 8-10.6



ompetitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand2-16 Poles 50A Feed Through Terminal Block Pitch 13.5mm Copper 0
