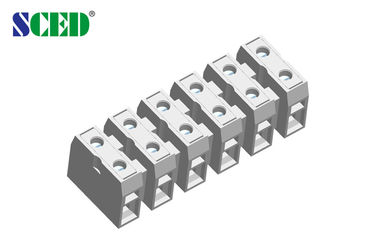

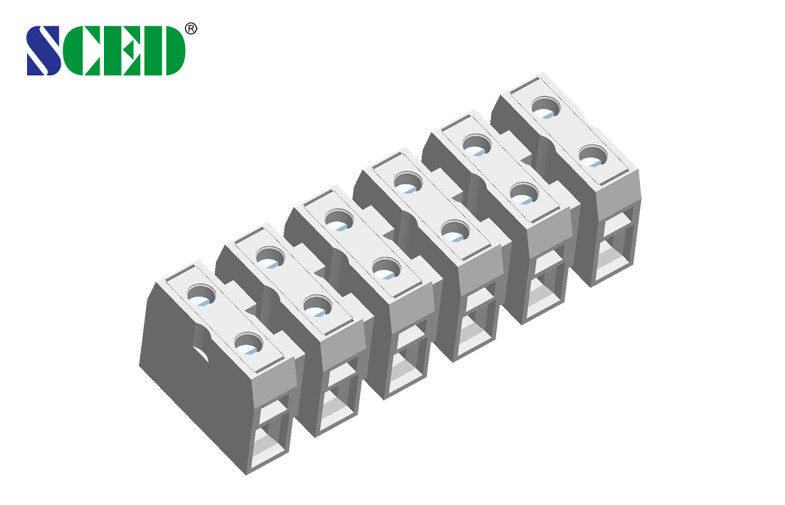

PA66 Insulation 600V 30A Feed Through Terminal Block Pitch 12.00mm

PA66 Insulation 600V 30A Feed Through Terminal Block Pitch 12.00mm

Products - Feed Through Terminal Block
  • Highlight

    600V 30A Feed Through Terminal Block

    ,

    PA66 Insulation Terminal Block

    ,

    Pitch 12.00mm Terminal Block

  • Conduction Board
    Copper
  • Color
    Grey
  • Voltage
    600V
  • Current
    30A
  • Clamp Cage
    Brass
  • Screw
    Steel
  • Pitch
    12mm
  • Insulation Material
    PA66
  • Inflammability
    UL94 V0
  • Stripping Length
    6-7
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TR-5N-01
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.235-0.268 per pole
  • Packaging Details
    Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

PA66 Insulation 600V 30A Feed Through Terminal Block Pitch 12.00mm

  • PA66 Insulation 600V 30A Feed Through Terminal Block Pitch 12.00mm
  • PA66 Insulation 600V 30A Feed Through Terminal Block Pitch 12.00mm
Get Price Contact Now

600V Feed Through Terminal Block 50A Pitch 12.00mm PA66 Copper



Detailed product Description:



Pitch 12.00mm, 600V 30A, 2-16P, Feed-Through Terminal Blocks

■ Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■ Single Level;  □Double levels;  □Triple levels

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 30

600 / 30



Wire Range                       AWG

10-30

10-30



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 41

1000 / 41

1000 / 41

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Clamp Cage / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demandPA66 Insulation 600V 30A Feed Through Terminal Block Pitch 12.00mm 0
