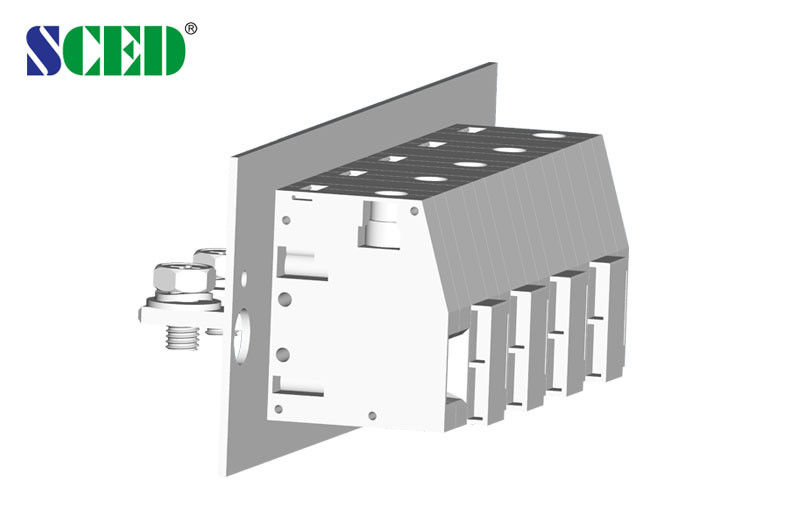

Steel Tin Plated Copper Through Panel Terminal Blocks PA66 UL94 V0

Steel Tin Plated Copper Through Panel Terminal Blocks PA66 UL94 V0

Products - Through Panel Terminal Blocks
  • Highlight

    32.5mm Through Panel Terminal Blocks

    ,

    PA66 Tin Plated Terminal Blocks

    ,

    UL94 V0 Terminal Blocks

  • Terminal Width
    32.5mm
  • Volt
    600V
  • Current
    150A
  • Plastic
    PA66
  • Type
    Through Panel
  • Screw
    Steel
  • Conduction Board
    Copper
  • Inflammability Class
    UL94 V0
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE, UL, CUL, VDE, CQC etc.
  • Model Number
    TR-50N-04-VP-A3
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 1-1.78 Per Pcs
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Steel Tin Plated Copper Through Panel Terminal Blocks PA66 UL94 V0

  • Steel Tin Plated Copper Through Panel Terminal Blocks PA66 UL94 V0
  • Steel Tin Plated Copper Through Panel Terminal Blocks PA66 UL94 V0
  • Steel Tin Plated Copper Through Panel Terminal Blocks PA66 UL94 V0
Get Price Contact Now

Copper Through Panel Terminal Blocks PA66 UL94 V0 Steel Tin Plated





Detailed product Description:



Pitch 32.5mm, 600V 150A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

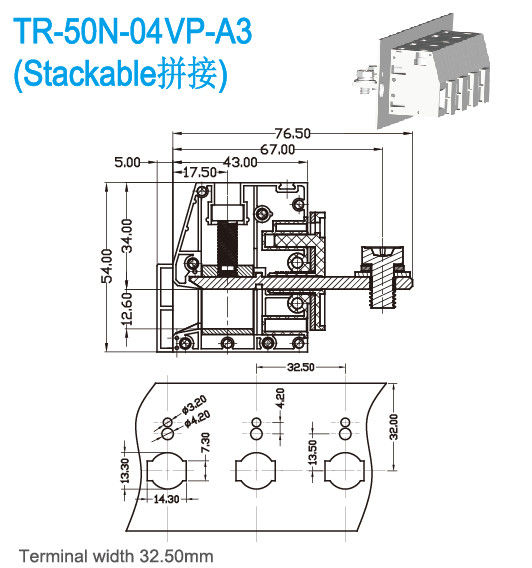

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 150



600 / 5

Wire Range                       AWG

6-1/0



6-1/0

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

830 / 150

1000 / 150

1000 / 150

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

50

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

24

Screw / Torque                    / lbf.in

M6 / 38-40



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.
