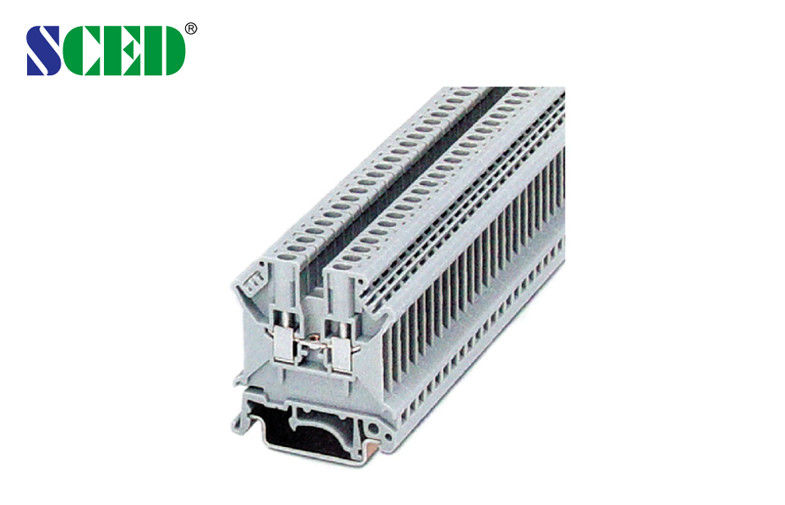

Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A

Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A

Products - Din Rail Terminal Blocks
  • Highlight

    Automation Din Rail Terminal Blocks

    ,

    600V Din Rail Terminal Blocks

    ,

    Width 5.2mm Terminal Blocks

  • Volt
    600 V
  • Current
    20A
  • Inflammability Class
    UL94, V-0
  • Contact Resistance
    Less Than 8mΩ
  • Conductor Size
    11 - 20 AWG
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Place of Origin
    Guangdong,China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TR-3N
  • Minimum Order Quantity
    500 PCS
  • Price
    USD 0.135-0.216 per PCS
  • Packaging Details
    Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A

  • Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A
  • Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A
Get Price Contact Now

Single Deck Din Rail Terminal Blocks Terminal width 5.2mm 600V 20A



Detailed product Description:



Terminal width: 5.2mm, 600V 20A, AWG:28-12, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:

Description                    Color

Type

Terminal                       Grey

TR-3N

Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A 0End Cover                      Grey



D-TR-3/16

Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A 1Fixed Bridge



FBI 10-5       Imax: 30A

Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A 2Insertion Bridge



EBL 10-5       Imax: 24A

Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A 3Separating Plate



TS-K

Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A 4Partition Plate



ATP-TR

Zack Strip                      White

ZB5

Screwdriver

SZS0.6×3.5

Rail Material

aluminum

Dimensions                             mm

5.2/42.5/2

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Screw / Torque                           Nm

M3 / 0.6-0.8

Stripping Length                          mm

8

IEC Technical Data



Max. Load Current / Cross Section         A / mm2

32 / 4

Rated Surge Voltage / Contamination Class    KV / -

8 / 3

Surge Voltage Category

Ⅲ





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Elevator Single Deck Din Rail Terminal Blocks Width 5.2mm 600V 20A 5
