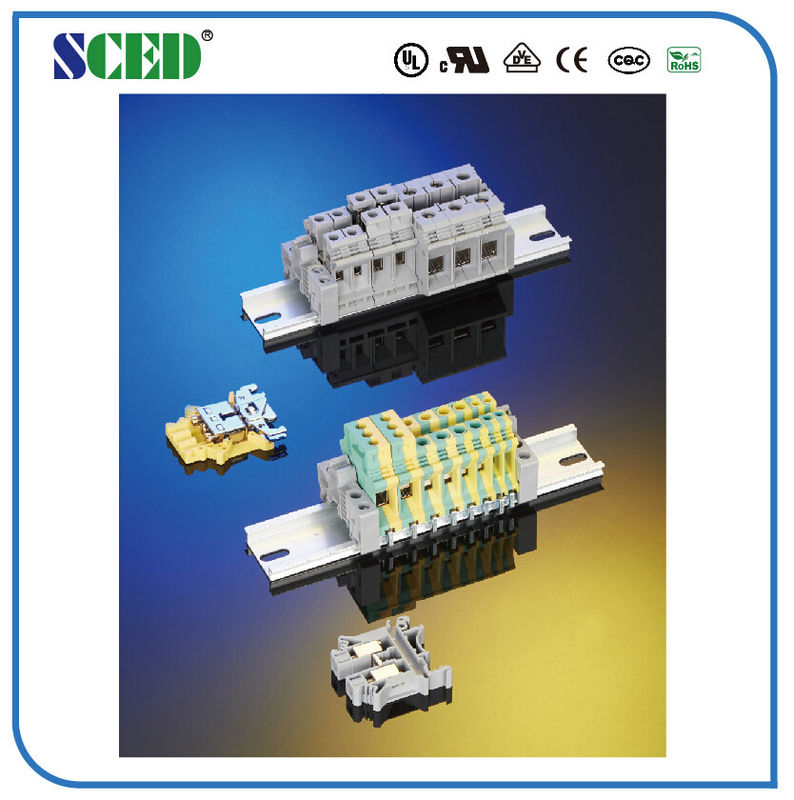

Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw

Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw

  • Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw
  • Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw
Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: UL,CE etc.
Model Number: TR-KG5N
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.5-1.0 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 Working Days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Terminal Width: 6.2mm Wire Range: 26-10 AWG
Color: Green And Yellow Stripping Length: 8mm
Screw: M3 Torque: 0.6-0.8 Nm
Height: 47/54.5/52 Mm Dimensions: 6.2/42.5mm
High Light:

Din Rail Terminal Blocks 4mm2

,

6.2mm Din Rail Terminal Blocks

,

10AWG Din Rail Terminal Blocks

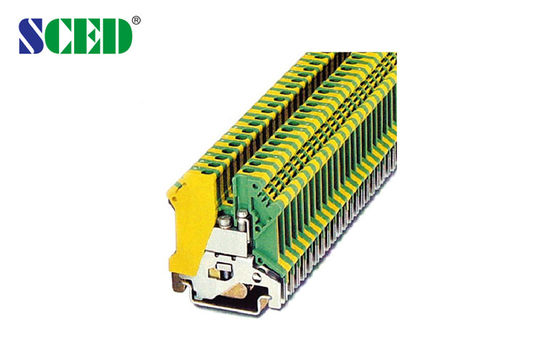

Ground Din Rail Terminal Blocks 4mm2 Brass 6.2mm 26-10 AWG M3 Screw Green and Yellow



Detailed product Description:



Terminal Width: 6.2mm, AWG:26-10, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



Wire Range:■Right angle wire inlet;

Decks:■Single Deck;

Standard color: Green and yellow.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw 0



Parameter and Drawing Specifications:

Description Color Type
Terminal Green & Yellow TR-KG5N
Zack Strip White ZB6 SZS0.6x3.5
Rail Material Aluminum / Steel
Dimensions 6.2/42.5
Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
Wire Fixing Screw / Torque Nm M3 / 0.6-0.8
Center Fixing Screw / Torque Nm M3 / 0.6-0.8
Stripping Length mm 8



Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. Stable high quality and competitive price
  4. Quick response and good service

Ground 4mm2 Din Rail Terminal Blocks Brass 6.2mm 26-10AWG M3 Screw 1
