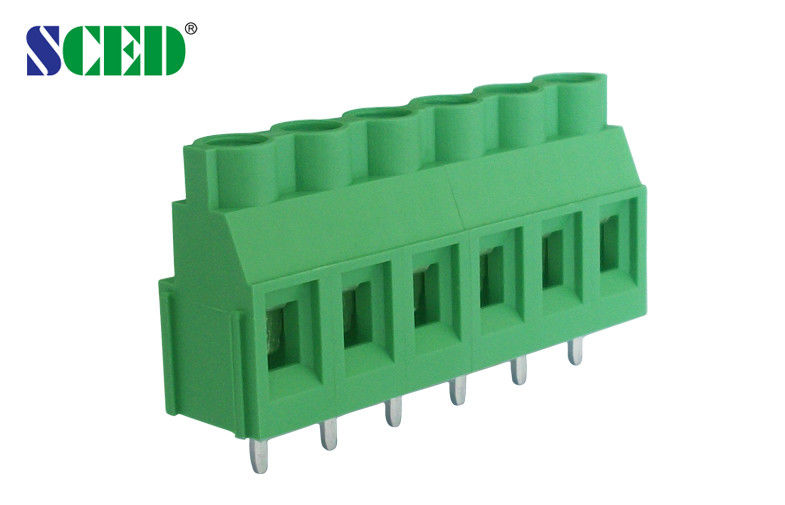

Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class
Detailed product Description:
Pitch 7.62mm, 300V 30A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series
■ Right angle wire inlet
■ Single Deck
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:

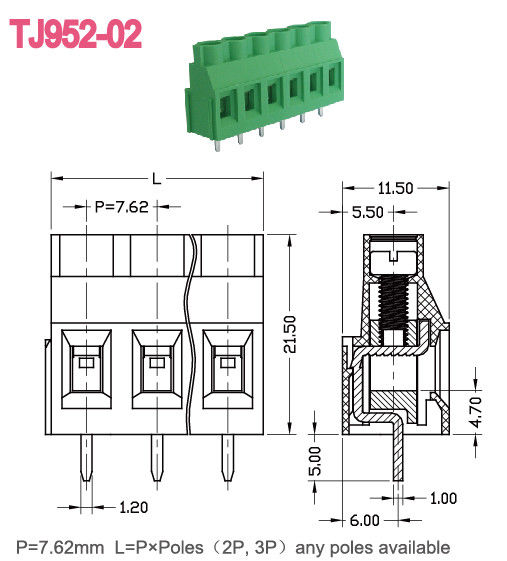

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300 / 30 | 300 / 30 | |
| Wire Range AWG | 10-30 | 10-30 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 630 / 32 | 1000 / 32 | 1000 / 32 |
| Rated Surge Voltage KV | 6 | 8 | 6 |
| Rated Connecting Capacity mm2 | 4.0 | ||
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Clamp Cage / Plating | Brass / Nickel Plated | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Screw / Plating | Steel / Zinc Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.9 | ||
| Stripping Length mm | 7-8 | ||
| Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
