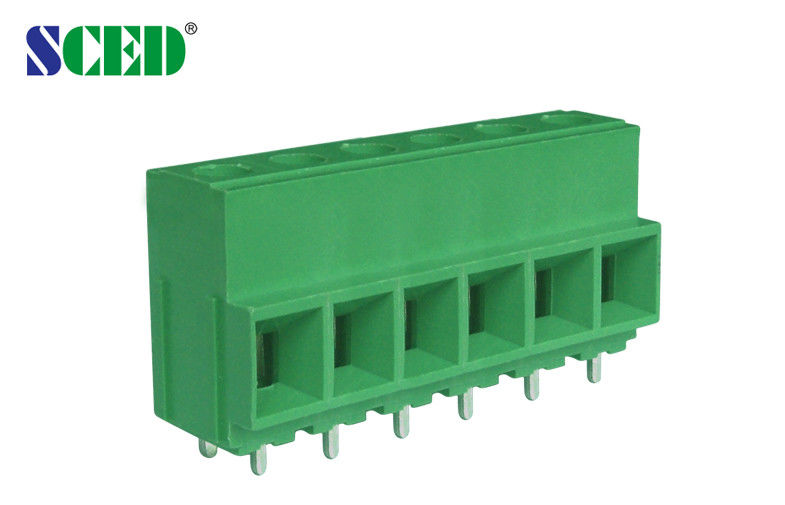

Euro Raising Series 57A PCB Terminal Block 10.16mm Pitch 2-16 Poles

Euro Raising Series 57A PCB Terminal Block 10.16mm Pitch 2-16 Poles

  • Euro Raising Series 57A PCB Terminal Block 10.16mm Pitch 2-16 Poles
  • Euro Raising Series 57A PCB Terminal Block 10.16mm Pitch 2-16 Poles
Euro Raising Series 57A PCB Terminal Block 10.16mm Pitch 2-16 Poles
Product Details:
Place of Origin: Guangdong, China
Brand Name: SCED
Certification: CE,UL,CUL,CQC and VDE etc.
Model Number: TJ952-01
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.114-0.228 PER POLE
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Insulation Material: PA66 Inflammability Class: UL94-V0
Screw: M4 Torque: 10.6-13 Lbf.in
Clamp Cage: Brass Poles: 2-16 Poles
Pitch: 10.16mm Current: 57A
Voltage: 300V Wire Range: 6-22 AWG
High Light:

10.16mm PCB Terminal Block

,

Euro Raising PCB Terminal Block

,

57A PCB Screw Terminal Block

57A PCB Screw Terminal Block 10.16mm Pitch Euro Raising Series 2-16 Poles



Detailed product Description:



Pitch 10.16mm, 300V 57A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

Wire Inlet:■Right angle wire inlet

Decks:■Single Deck; □Double decks; □Triple decks

Standard color: Green.

Other colors are also available, please refer to below How to Order and select the color you want.



How to order:



Euro Raising Series 57A PCB Terminal Block 10.16mm Pitch 2-16 Poles 0



Applications:

Euro terminal blocks are widely used in industry and automatic control, power, PCB, frequency conversion, electronics and so on.

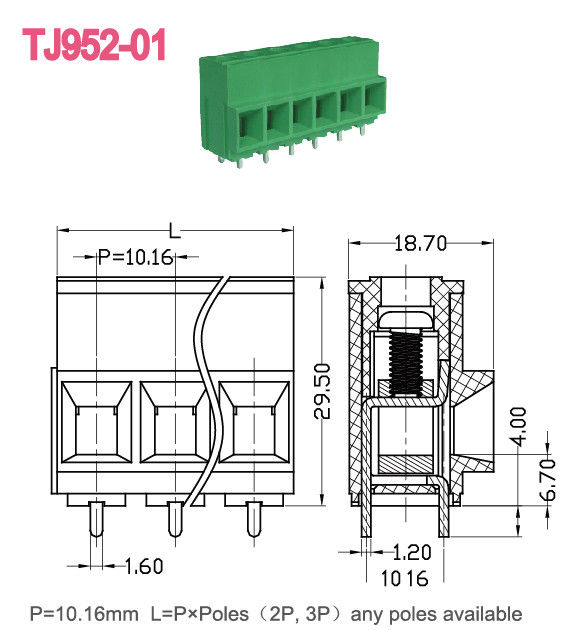

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/57 300/57
Wire Range AWG 6-22 6-22
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 690 / 57 1000 / 57 1000 / 57
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 10
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ2.4
Stripping Length mm 9-11
Screw / Torque / lbf.in M4 / 10.6-13



Competitive Advantage:



  1. Full range products for selection
  2. Flexible to design the exact part per customers’ demand
  3. Good service and quick response
  4. OEM and ODM service
  5. Stable good quality and competitive price

Euro Raising Series 57A PCB Terminal Block 10.16mm Pitch 2-16 Poles 1
