Place of Origin: | China |
Brand Name: | SCED |
Certification: | UL,CE, CUL, CQC and VDE etc. |
Model Number: | TP381P-20F |
Minimum Order Quantity: | 1000 Piece/Pieces |
---|---|
Price: | USD 0.05-0.1 PER PCS |
Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
Delivery Time: | 5-20 Working Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000000 Pole/Poles per Month |
Color: | Green | Type: | Female Part |
---|---|---|---|
Pitch: | 3.5mm | Voltage: | 300V |
Current: | 8A | Wire Range: | 16-30 AWG |
Screw Torque: | 2-2.2 Lbf.in | Screw: | M2 |
Insulation Material: | PA66 | Clamp Cage: | Brass |
High Light: | Mounting Ears Pluggable Terminal Block,Pitch 3.5mm Pluggable Terminal Block,Mounting Ears Plug In Terminal Blocks 8A |

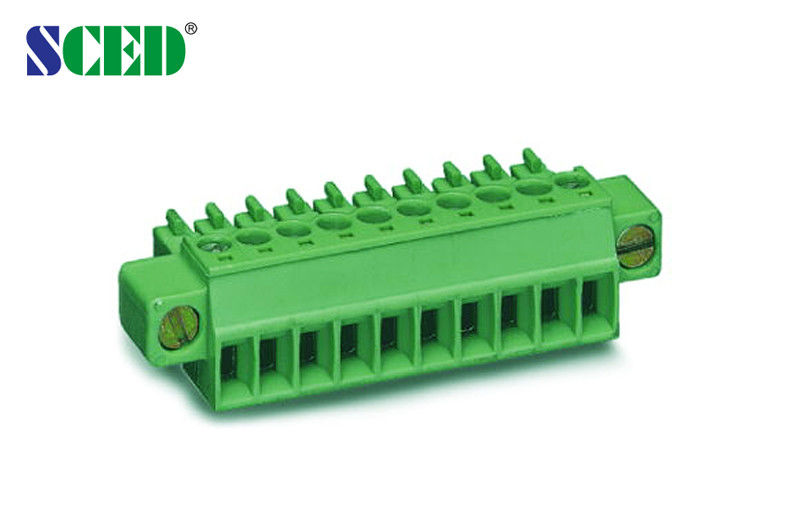

Mounting Ears Pluggable Terminal Block 8A Plug Female Sockets Pitch 3.5mm Green
Detailed product Description:
Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
LEVELS: ■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-20F, TP381H-20VF, TP381H-22F, TP381H-22VF
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
Our products can be used in Server Site, Security, Communication, Power Industrial, Energy Conservation, PCB, Electronics etc.

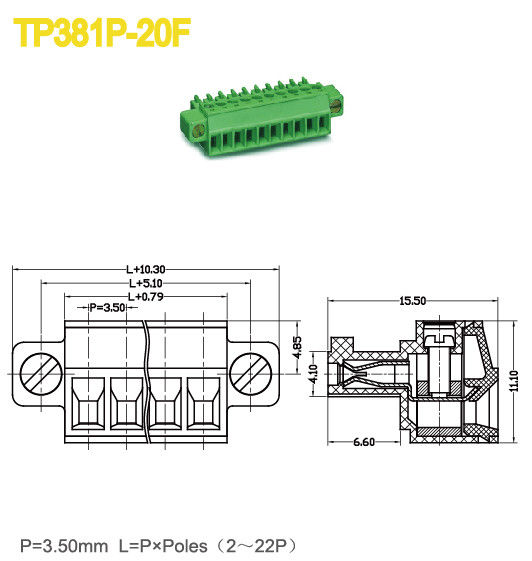

Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300/8 | ||
Wire Range AWG | 16-30 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Contactor / Plating | Phosphor Bronze / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
Stripping Length mm | 7 | ||
Screw / Torque / lbf.in | M2 / 2-2.2 |
