5.08mm Pitch PCB Terminal Block 300V 10A M3 2-24 Poles Green Color

5.08mm Pitch PCB Terminal Block 300V 10A M3 2-24 Poles Green Color

  • 5.08mm Pitch PCB Terminal Block 300V 10A M3 2-24 Poles Green Color
  • 5.08mm Pitch PCB Terminal Block 300V 10A M3 2-24 Poles Green Color
5.08mm Pitch PCB Terminal Block 300V 10A M3 2-24 Poles Green Color
Product Details:
Place of Origin: Guangdong, China
Brand Name: SCED
Certification: CE,UL
Model Number: TJ508-14
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.042-0.082
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Screw: M3 Pitch: 5.08mm
Color: Green Current: 10A
Voltage: 300V Poles: 2-24 Poles
Clamp Cage: Brass Rated Surge Voltage: No Abnormal Within 1 Minute
Insulation Resistance: Above DC500V, 500MΩ Contact Resistance: Less Than 8mΩ
High Light:

5.08mm PCB Screw Terminal Block

,

24P PCB Screw Terminal Block

,

M3 Screw PCB Terminal Block

Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series



Wire Inlet: ■Right angle wire inlet

Decks: ■Single Deck

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.



5.08mm Pitch PCB Terminal Block 300V 10A M3 2-24 Poles Green Color 0

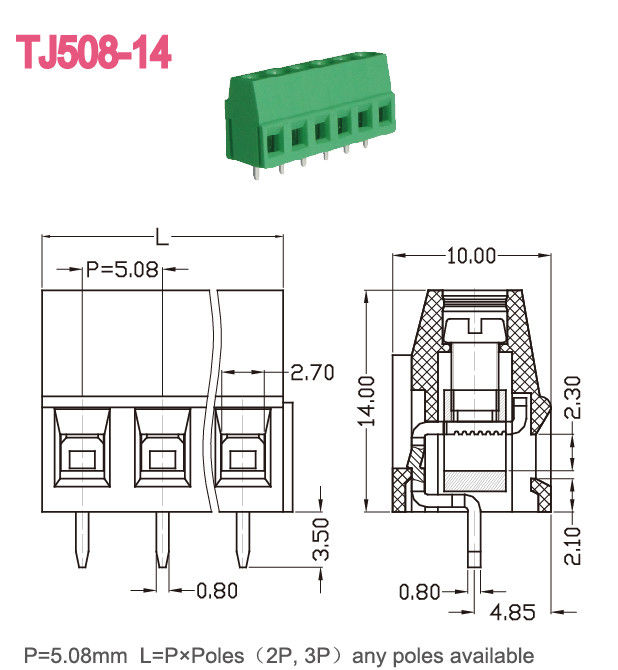

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10   300/10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3


Applications:



Normally our products will be used in a lot of fileds and industries, for example:



Medical Equipment, PCB, Military, Switch, Communication, Automation, Power Supply, Industrial Control, Security,  Frequency Converters and Server Site and so on.



Competitive Advantage:



  1. OEM an
  2. d ODM service
  3. More than 1000 models for selection
  4. High quality but competitive price
  5. Good after-sales service

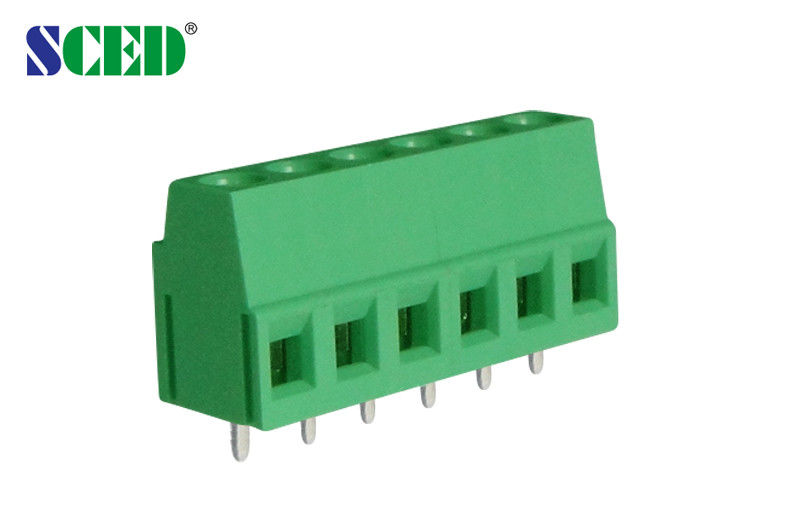

5.08mm Pitch PCB Terminal Block 300V 10A M3 2-24 Poles Green Color 1
