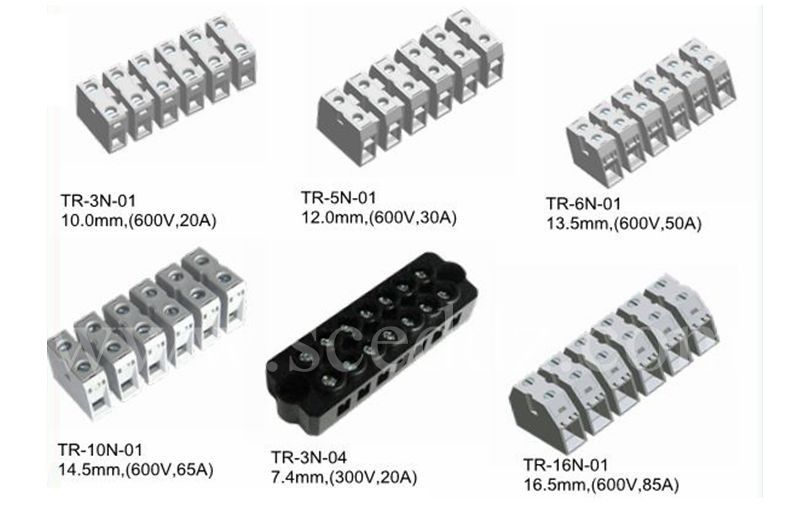

Copper 50A Feed Through Terminal Block Pitch 13.5mm 2-16 Poles

Copper 50A Feed Through Terminal Block Pitch 13.5mm 2-16 Poles

  • Copper 50A Feed Through Terminal Block Pitch 13.5mm 2-16 Poles
  • Copper 50A Feed Through Terminal Block Pitch 13.5mm 2-16 Poles
Copper 50A Feed Through Terminal Block Pitch 13.5mm 2-16 Poles
Product Details:
Place of Origin: Guangdong, China
Brand Name: SCED
Certification: UL,CE,CUL,CQC,VDE etc.
Model Number: TR-6N-01
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.148-0.29 Per Pole
Packaging Details: Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Insulation Material: PA66 Inflammability: UL94 V0
Screw: Steel Stripping Length: 7-8
Voltage: 600V Current: 50A
Wire Range: 8-26 AWG Pitch: 13.5mm
Conduction Board: Copper Clamp Cage: Brass
High Light:

Steel Screw Feed Through Terminal Block

,

Copper 50A Feed Through Terminal Block

,

16 Poles Copper Terminal Blocks

50A 600V Feed Through Terminal Block Pitch 13.5mm 2-16 Poles Copper





Detailed product Description:



Pitch 13.50mm, 600V 50A, 2-16P, Feed Through Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 50

600 / 50

600 / 5

Wire Range                       AWG

8-26

8-26

8-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 57

1000 / 57

1000 / 57

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Clamp Cage / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M4 / 8-10.6



ompetitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demandCopper 50A Feed Through Terminal Block Pitch 13.5mm 2-16 Poles 0
