Male Parts 8A Plug Terminal Block Pitch 3.5mm 300V UL94-V0 Class

Male Parts 8A Plug Terminal Block Pitch 3.5mm 300V UL94-V0 Class

  • Male Parts 8A Plug Terminal Block Pitch 3.5mm 300V UL94-V0 Class
  • Male Parts 8A Plug Terminal Block Pitch 3.5mm 300V UL94-V0 Class
Male Parts 8A Plug Terminal Block Pitch 3.5mm 300V UL94-V0 Class
Product Details:
Place of Origin: Guangdong, China
Brand Name: SCED
Certification: CE,UL
Model Number: TP381H-20
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.018-0.05 PER Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm.
Delivery Time: 5-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Poles: 2-22 Poles Type: Male Part
Pitch: 3.5mm Voltage: 300V
Current: 8A Insulation Material: PA66
Terminal: Brass Plating: Tin Plated
Rated Surge Voltage: 2.5KV PCB Hole Diameter: 1-2mm
High Light:

Server Site Plug Terminal Block

,

Frequency Converters Plug Terminal Block

,

8A Pluggable Terminal Block

8A Pluggable Terminal Block Male Part Pitch 3.5mm 300V UL94-V0 Class





Detailed product Description:



Header, Male Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



This header match with plug series: TP381P-20, TP381P-21, TP381P-22, TP381P-23



Wire Inlet: □Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

Levels: ■Single Level; □Double Levels; □Triple Levels



Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.

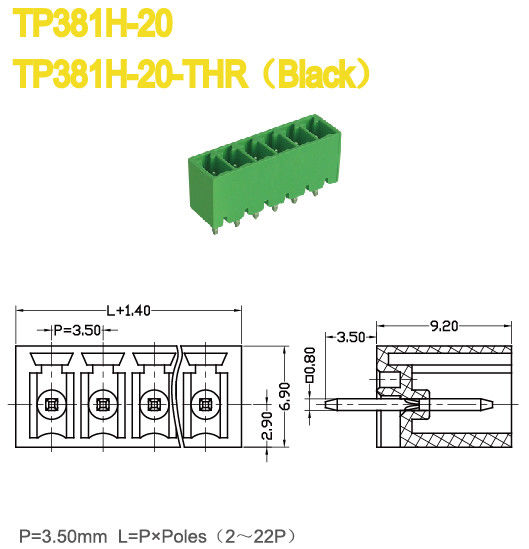

Male Parts 8A Plug Terminal Block Pitch 3.5mm 300V UL94-V0 Class 0

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 8
Wire Range AWG
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.2
PinDimension mm 0.8 x 0.8



Applications:

Our products can be used in lots of fields and industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Rail Transportation, Communication, Security, Medical Equipment and Military and so on.





Competitive Advantage:

  1. More than 10 years of experience in desinging and manufacturing
  2. OEM and ODM service
  3. High quality and competitive price
  4. More than 1000 models for selection

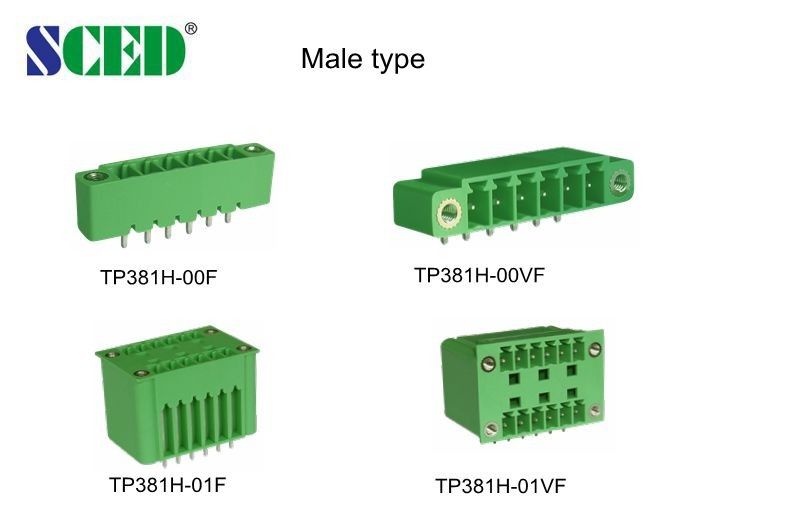

Male Parts 8A Plug Terminal Block Pitch 3.5mm 300V UL94-V0 Class 1
