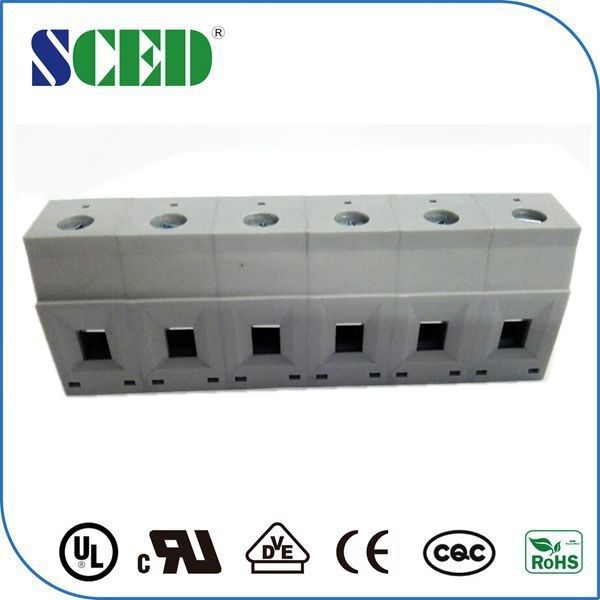

Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors

Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors

Products - Through Panel Terminal Blocks
  • Highlight

    6.2mm Through Panel Terminal Blocks

    ,

    24P Feed Through Terminal Blocks

    ,

    Bulkhead Connectors Feed Through Terminal Blocks

  • Color
    Grey
  • Current
    30A
  • Voltage
    300V
  • Wire Inlet
    Right Angle
  • Pitch
    6.2mm
  • Rated Surge Voltage
    No Abnormal Within 1 Minute
  • Contact Resistance
    Less Than 8mΩ
  • Inflammability Class
    UL94, V-0
  • Insulation Resistance
    Above DC500V, 500MΩ
  • Screw
    M3
  • Place of Origin
    Guangdong China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL,CQC,VDE etc.
  • Model Number
    TR-4N-02
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.081-0.162 Per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors

  • Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors
  • Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors
  • Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors
Get Price Contact Now

Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors



Detailed product Description:



Pitch 6.2mm, 300V 15A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 30



300 / 10

Wire Range                       AWG

10-30



10-30

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

500 / 32

630 / 32

1000 / 32

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

8

Screw / Torque                    / lbf.in

M3 / 5.3-7



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.Single Deck Through Panel Terminal Blocks Pitch 6.2mm 2P-24P Bulkhead Connectors 0
