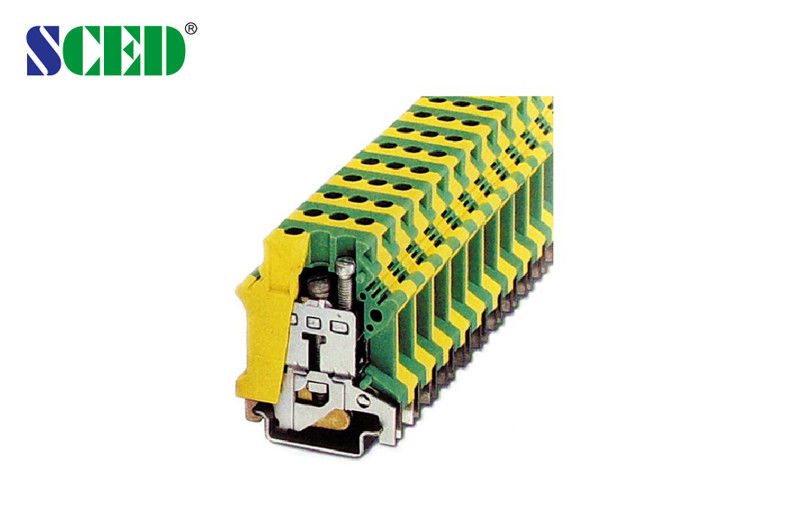

Custom 25mm 2 Uk Din Rail Terminals 12.2mm Right Angle Wire Inlet

Custom 25mm 2 Uk Din Rail Terminals 12.2mm Right Angle Wire Inlet

  • Custom 25mm 2 Uk Din Rail Terminals 12.2mm Right Angle Wire Inlet
  • Custom 25mm 2 Uk Din Rail Terminals 12.2mm Right Angle Wire Inlet
Custom 25mm 2 Uk Din Rail Terminals 12.2mm Right Angle Wire Inlet
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: CE,UL,CUL,CQC,VDE etc.
Model Number: TR-KG16N
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.81-1.62 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 500 Piece/Pieces
Contact Now
Detailed Product Description
Color: Yellow And Green Terminal Width: 12.2mm
Wire Inlet: Right Angle Wire Range: 22-4 AWG
Rail Material: Aluminum / Steel Dimensions: 12.2/42.5mm
Wire Fixing Screw: M4 Torque: 1.5-1.8 Nm
Stripping Length: 11mm Type: Din Rail
High Light:

12.2mm Din Rail Terminals

,

25mm Din Rail Terminals

,

ODM Din Rail Terminal Blocks



Custom 25mm 2 Uk Din Rail Terminals 12.2mm Right Angle Wire Inlet



Detailed product Description:



Terminal Width: 12.2mm, AWG:22-4, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green & Yellow.

Other colors also available as per customer's request.



Applications:

For this series products, normally it will be used in Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator and so on.



Parameter and Drawing Specifications:

Description                    Color

Type

Terminal                    Green & Yellow

TR-KG16N

Zack Strip                      White

ZB10         SZS1.0x4.0

Rail Material

Aluminum / Steel

Dimensions

12.2/42.5

Height (U35: 7.5/U35: 15G 32)              mm

54/61.5/59

Wire Fixing Screw / Torque                 Nm

M4 / 1.5-1.8

Center Fixing Screw / Torque                Nm

M4 / 1.5-1.8

Stripping Length                          mm

11



Competitive Advantage:



1. 12 years of experience

2. 10 main series and more than 1000 models for selection

3. OEM and ODM service can be provided

4. good quality with competitive price

5. good service.
