50A Pitch 13.5mm Feed Through Terminal Block 2-16 Poles Copper

50A Pitch 13.5mm Feed Through Terminal Block 2-16 Poles Copper

Products - Feed Through Terminal Block
  • Highlight

    Frequency Converters Feed Through Terminal Block

    ,

    13.5mm Feed Through Terminal Block

    ,

    Rail Transportation Feed Through Terminal Blocks

  • Insulation Material
    PA66
  • Inflammability
    UL94 V0
  • Screw
    Steel
  • Stripping Length
    7-8
  • Voltage
    600V
  • Current
    50A
  • Wire Range
    8-26 AWG
  • Pitch
    13.5mm
  • Conduction Board
    Copper
  • Clamp Cage
    Brass
  • Place of Origin
    Guangdong, China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC,VDE etc.
  • Model Number
    TR-6N-01
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.148-0.29 Per Pole
  • Packaging Details
    Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

50A Pitch 13.5mm Feed Through Terminal Block 2-16 Poles Copper

  • 50A Pitch 13.5mm Feed Through Terminal Block 2-16 Poles Copper
  • 50A Pitch 13.5mm Feed Through Terminal Block 2-16 Poles Copper
  • 50A Pitch 13.5mm Feed Through Terminal Block 2-16 Poles Copper
Get Price Contact Now

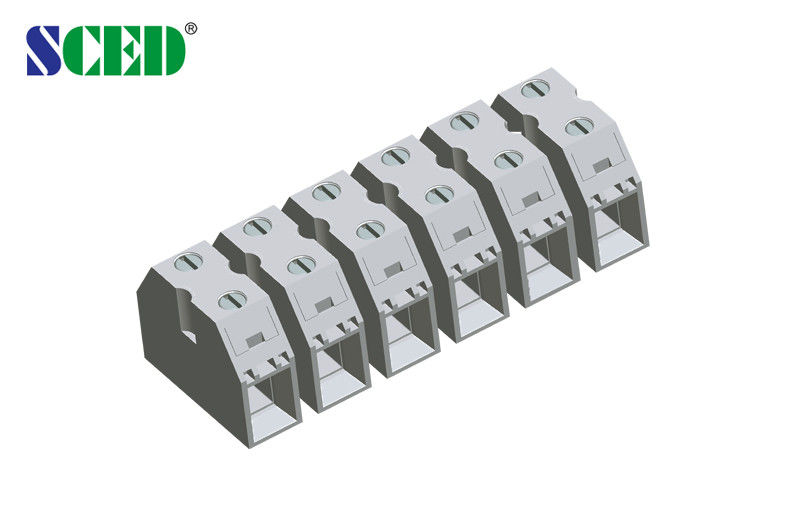

50A 600V Feed Through Terminal Block Pitch 13.5mm 2-16 Poles Copper





Detailed product Description:



Pitch 13.50mm, 600V 50A, 2-16P, Feed Through Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 50

600 / 50

600 / 5

Wire Range                       AWG

8-26

8-26

8-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 57

1000 / 57

1000 / 57

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Clamp Cage / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M4 / 8-10.6



ompetitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand50A Pitch 13.5mm Feed Through Terminal Block 2-16 Poles Copper 0
