Brass 7.62mm Pitch PCB Screw Terminal Block M3 300V 30A PA66 UL94-V0 Class

Brass 7.62mm Pitch PCB Screw Terminal Block M3 300V 30A PA66 UL94-V0 Class

  • Brass 7.62mm Pitch PCB Screw Terminal Block M3 300V 30A PA66 UL94-V0 Class
  • Brass 7.62mm Pitch PCB Screw Terminal Block M3 300V 30A PA66 UL94-V0 Class
Brass 7.62mm Pitch PCB Screw Terminal Block M3 300V 30A PA66 UL94-V0 Class
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: UL,CE etc.
Model Number: TJ952-02
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.5-0.12 Per Pole
Packaging Details: Standard export packing carton, or according to customers demand.
Delivery Time: 5-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Screw: M3 Insulation Resistance: Above DC500V, 500MΩ
Rated Surge Voltage: No Abnormal Within 1 Minute Color: Green
Pitch: 7.62mm Torque: 10.6-13 Lbf.in
Current: 30A Voltage: 300V
Plastic: PA66 Terminal: Brass
High Light:

7.62mm Pitch PCB Screw Terminal Block

,

M3 PCB Screw Terminal Block

,

30A PA66 PCB Terminal Blocks

Brass PCB Screw Terminal Block 7.62mm Pitch M3 300V 30A PA66 UL94-V0 Class



Detailed product Description:



Pitch 7.62mm, 300V 30A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■ Right angle wire inlet

■ Single Deck

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.



How to order:

Brass 7.62mm Pitch PCB Screw Terminal Block M3 300V 30A PA66 UL94-V0 Class 0

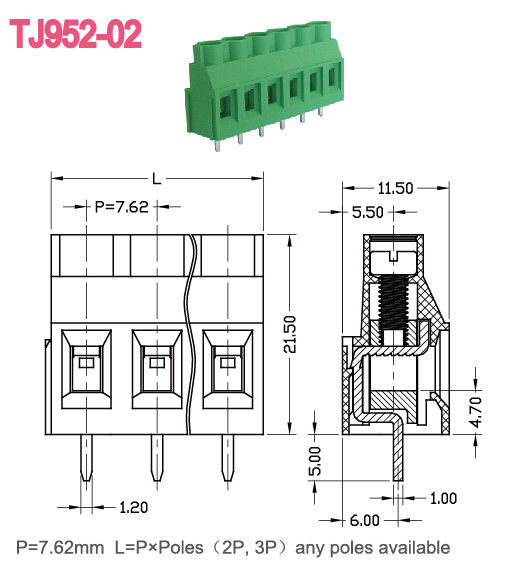

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 30 300 / 30
Wire Range AWG 10-30 10-30
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 32 1000 / 32 1000 / 32
Rated Surge Voltage KV 6 8 6
Rated Connecting Capacity mm2 4.0
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.9
Stripping Length mm 7-8
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. Flexible to design the exact part per customers’ demand
  2. High quality and competitive price
  3. Good after-sales service

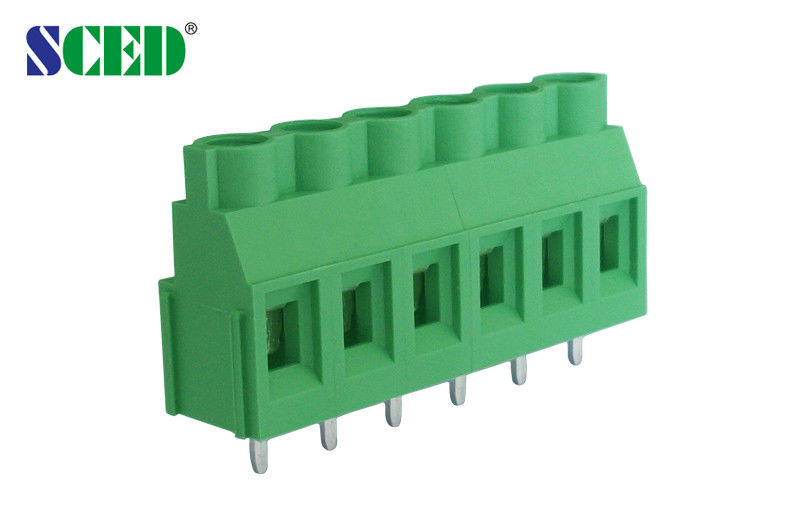

Brass 7.62mm Pitch PCB Screw Terminal Block M3 300V 30A PA66 UL94-V0 Class 1
