| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TR-KG10N-02 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| High Light: | rail mounted terminal blocks,din rail terminals blocks |
||
|---|---|---|---|

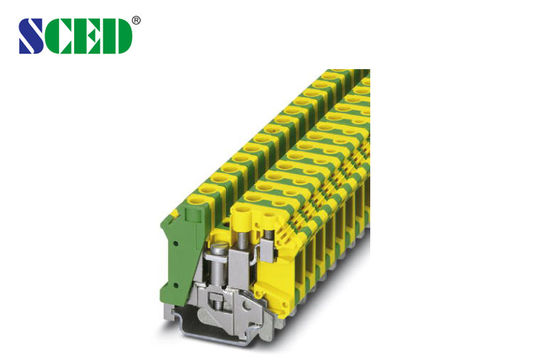

16mm2 Din Rail Terminal Blocks Terminal Width 10.2mm AWG 24 - 6 Ground Terminal Blocks
Detailed product Description:
Terminal Width: 10.2mm, AWG:24-6, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; ■Double decks; □Triple decks
Parameter and Drawing Specifications:
| Description Color | Type |
| Terminal Green & Yellow | TR-KG10N-02 |
| Zack Strip White | ZB10 SZS1.0x4.0 |
| Rail Material | Aluminum / Steel |
| Dimensions | 10.2/53 |
| Height (U35: 7.5/U35: 15G 32) mm | 47/54.5/52 |
| Wire Fixing Screw / Torque Nm | M4 / 1.5-1.8 |
| Center Fixing Screw / Torque Nm | M3 / 0.6-0.8 |
| Stripping Length mm | 11/7 |
Standard color:
Green & Yellow. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
.
Tag:
Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
