Place of Origin: | Shenzhen, China |
Brand Name: | SCED |
Certification: | UL, CE |
Model Number: | TR-KG3N-02 |
Minimum Order Quantity: | 500 |
---|---|
Price: | Get latest price |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-20 working days |
Payment Terms: | T/T |
Supply Ability: | 1KK poles each monthly |
Highlight: | rail mounted terminal blocks,din rail terminals blocks |
---|

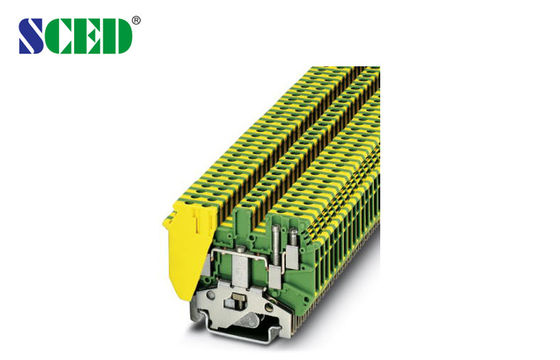

2.5mm2 Width 5.2mm Din Rail Yellow and Green Color Din Rail Series AWG 30 - 12 Elevator Application
Detailed product Description:
Terminal Width: 5.2mm, AWG:30-12, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; ■Double decks; □Triple decks
Parameter and Drawing Specifications:
Description Color | Type |
Terminal Green & Yellow | TR-KG3N-02 |
Zack Strip White | ZB5 SZS0.6x3.5 |
Rail Material | Aluminum / Steel |
Dimensions | 5.2/63.5 |
Height (U35: 7.5/U35: 15G 32) mm | 47/54.5/52.5 |
Wire Fixing Screw / Torque Nm | M3 / 0.6-0.8 |
Center Fixing Screw / Torque Nm | M2.5 / 0.5-0.6 |
Stripping Length mm | 8 |
Standard color:
Grey. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
.
Tag:
Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
