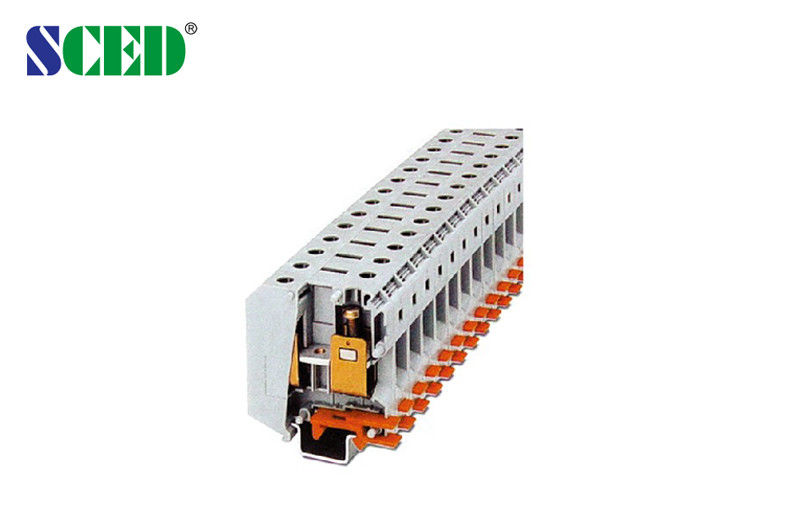

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0

Products - Din Rail Terminal Blocks
  • Highlight

    rail mounted terminal blocks

    ,

    din rail mount terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-H50
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0

  • Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0
  • Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0
Get Price Contact Now

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0



Detailed product Description:



Terminal Width: 20.0mm, 600V 150A, AWG:6-1/0, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks



Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0 0



Parameter and Drawing Specifications:

Description Color Type
Terminal Grey TR-H50

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0 1End Cover Grey





Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0 2Fixed Bridge



FBI 2-20 Imax: 150A

FBI 3-20

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0 3Insertion Bridge



 EB 10-15 Imax:110A

Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0 4Separating Plate





Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0 5Partition Plate




Zack Strip White ZB10
Screwdriver SZS 1.2×8.0
Rail Material aluminum
Dimensions mm 20/70.5
Height (U35: 7.5/U35: 15G 32) mm 83.5/81.5
Screw / Torque Nm M6 / 6-8
Stripping Length mm 24
IEC Technical Data
Max. Load Current / Cross Section A / mm2 150 / 150
Rated Surge Voltage / Contamination Class KV / - 8 / 3
Surge Voltage Category Ⅲ





Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0 6



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



Terminal Width 20.0mm 600V 150A Din Rail Terminal Blocks AWG 6 - 1 / 0 7
