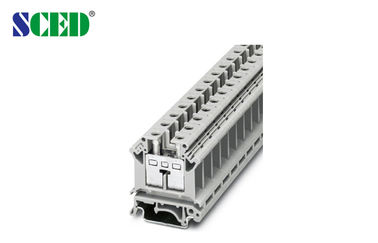

Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4

Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4

Products - Din Rail Terminal Blocks
  • Highlight

    rail mounted terminal blocks

    ,

    din rail mount terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-16N-05
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4

  • Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4
  • Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4
Get Price Contact Now

Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4



Detailed product Description:



Terminal width: 12.2mm, 600V 85A, AWG:22-4, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks





Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4 0





Parameter and Drawing Specifications:

Description Color Type
Terminal Grey TR-16N-05

Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4 1End Cover Grey



 D-TR-4/10

Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4 2Fixed Bridge



 FBI 10-12 Imax: 101A

Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4 3Insertion Bridge



 EB 10-12 Imax: 68A

Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4 4Separating Plate



 TS-K

Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4 5Partition Plate



 ATP-TR
Zack Strip White ZB10
Screwdriver SZS 1.0×4.0
Rail Material aluminum
Dimensions mm 12.2/42.5/1.8
Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
Screw / Torque Nm M4 / 1.5-1.8
Stripping Length mm 11
IEC Technical Data
Max. Load Current / Cross Section A / mm2 101 / 25
Rated Surge Voltage / Contamination Class KV / - 6 / 3
Surge Voltage Category Ⅲ





Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4 6



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks





Terminal width 12.2mm Din Rail Terminal Blocks 600V 85A AWG 22 - 4 7
