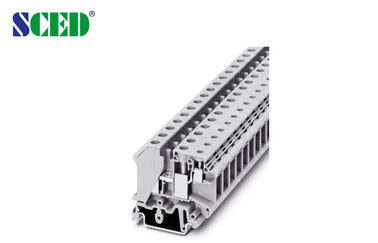

Din Rail Terminal Blocks 600V 65A AWG 24 - 6 Terminal width 10.2mm

Din Rail Terminal Blocks 600V 65A AWG 24 - 6 Terminal width 10.2mm

  • Din Rail Terminal Blocks    600V 65A   AWG 24 - 6    Terminal width 10.2mm
Din Rail Terminal Blocks    600V 65A   AWG 24 - 6    Terminal width 10.2mm
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-10N-03
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
High Light:

din rail mount terminal blocks

,

din rail terminals blocks

Din Rail Terminal Blocks 600V 65A AWG 24 - 6 Terminal width 10.2mm



Detailed product Description:



Terminal width: 10.2mm, 600V 65A, AWG:24-6, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Deck; ■Double decks; □Triple decks



Din Rail Terminal Blocks    600V 65A   AWG 24 - 6    Terminal width 10.2mm    0





Parameter and Drawing Specifications:

Description Color Type
Terminal Grey TR-10N-03

Din Rail Terminal Blocks    600V 65A   AWG 24 - 6    Terminal width 10.2mm    1End Cover Grey





Din Rail Terminal Blocks    600V 65A   AWG 24 - 6    Terminal width 10.2mm    2Fixed Bridge



FBI 10-10 Imax: 76A

Din Rail Terminal Blocks    600V 65A   AWG 24 - 6    Terminal width 10.2mm    3Insertion Bridge





Din Rail Terminal Blocks    600V 65A   AWG 24 - 6    Terminal width 10.2mm    4Separating Plate



TS-KK3

Din Rail Terminal Blocks    600V 65A   AWG 24 - 6    Terminal width 10.2mm    5Partition Plate




Zack Strip White ZB10
Screwdriver SZS 1.0×4.0
Rail Material aluminum
Dimensions mm 10.2/53/-
Height (U35: 7.5/U35: 15G 32) mm 47/54.5/52
Screw / Torque Nm M4, M3 / 1.5-1.8, 0.6-0.8
Stripping Length mm 11 / 7
IEC Technical Data
Max. Load Current / Cross Section A / mm2 76 / 16
Rated Surge Voltage / Contamination Class KV / - 8 / 3
Surge Voltage Category





Din Rail Terminal Blocks    600V 65A   AWG 24 - 6    Terminal width 10.2mm    6



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
